Male
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section

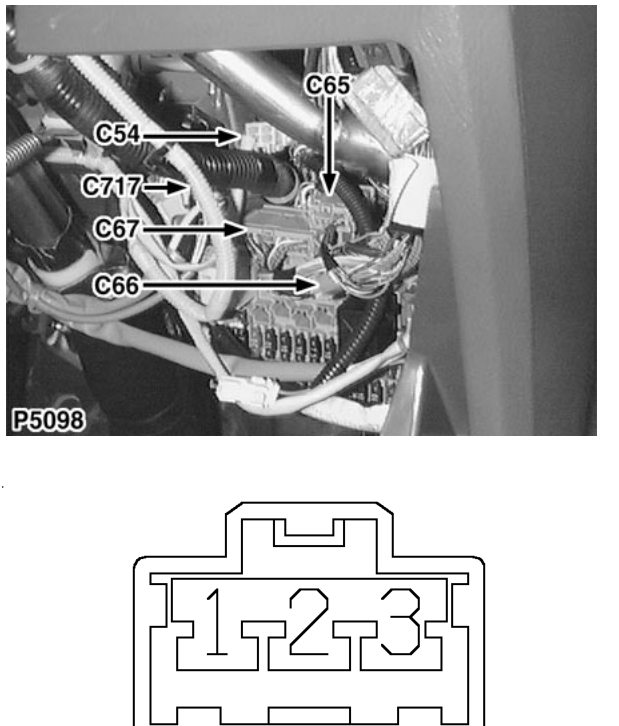

- C0054 › Male
ConnectorsMale
Main harness to SRS harness
Male
YELLOW
Under RH side of fascia
| Cav | Col | CCT |
|---|---|---|
| 1 | G | 21 |
| 1 | G | 24 |
| 1 | P | 79 |
| 3 | G | 21 |
| 3 | G | 24 |
| 3 | P | 80 |
