Female

Make

Rover

Model

400 Electrical Library

Year

1998 model year on

Section

C0056 › Female

ConnectorsFemale · page 1 of 2

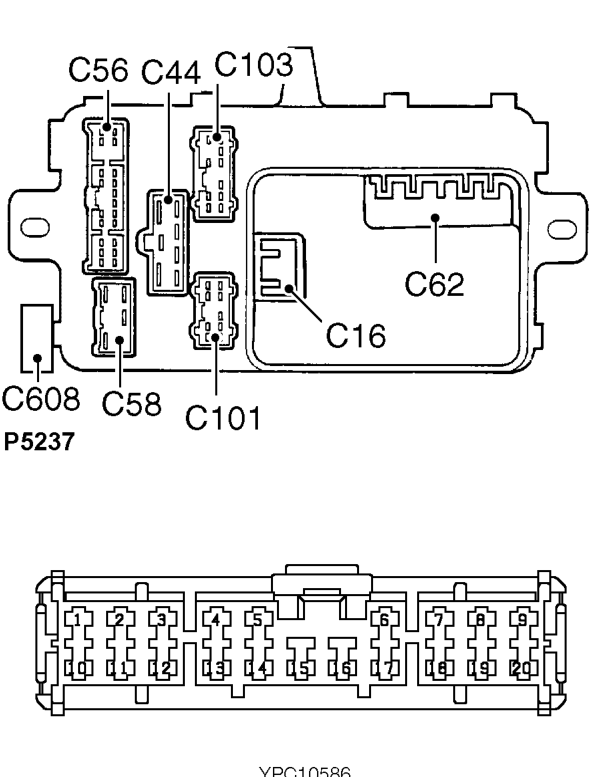

Passenger compartment fusebox

Female

GREEN

Behind passenger compartment fusebox

Cav	Col	CCT
1	Y	69
1	Y	70
1	Y	79
1	GY	80
2	BY	69
2	BY	70
2	GK	79
2	GK	80
4	GY	ALL
5	GO	ALL
6	YR	ALL

Cav	Col	CCT
7	RY	69
7	RY	70
7	RW	79
7	RW	80
8	BW	ALL
9	RG	69
9	RG	70
9	RU	79
9	RU	80
10	RW	69
10	RW	70
10	RY	79
10	RY	80
