Alarm ECU
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section
- C0057 › Alarm ECU

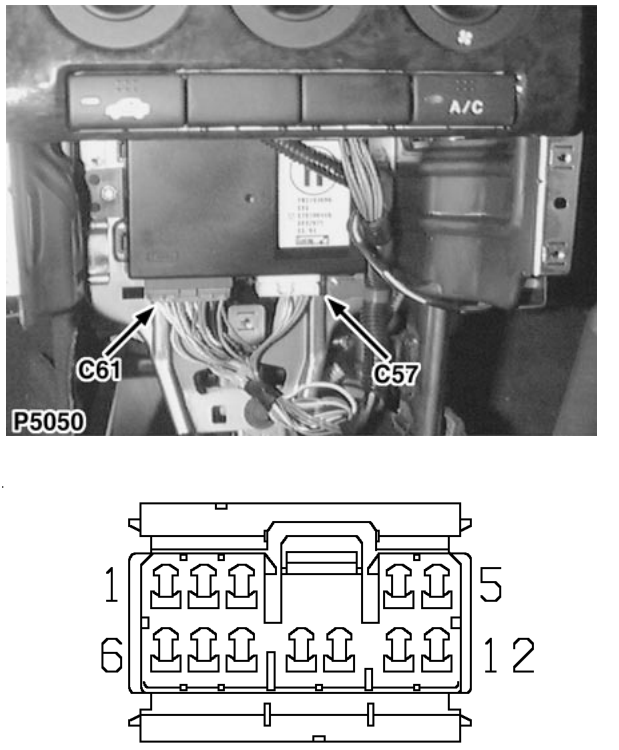

ConnectorsAlarm ECU
Alarm ECU
Female
WHITE
Behind centre console
| Cav | Col | CCT |
|---|---|---|
| 6 | GY | ALL |
| 7 | GU | ALL |
| 9 | BR | 69 |
| 9 | BR | 70 |
| 9 | G | 79 |
| 9 | G | 80 |
| 10 | UW | ALL |
| 11 | SR | ALL |
| 12 | PK | ALL |
