Alarm ECU

Make

Rover

Model

400 Electrical Library

Year

1998 model year on

Section

C0061 › Alarm ECU

ConnectorsAlarm ECU · page 1 of 2

Alarm ECU

Female

GREY

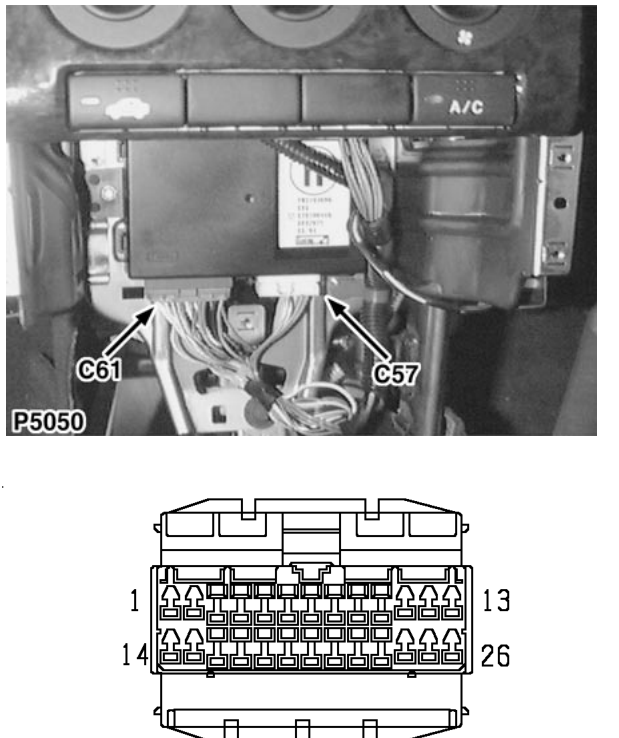

Behind centre console

Cav	Col	CCT
1	Y	69
1	Y	70
1	Y	79
1	GY	80
2	B	ALL
4	RU	69
4	UR	70
4	UR	79
4	UR	80
5	UG	ALL
6	GR	ALL
7	GU	ALL
8	UG	ALL

Cav	Col	CCT
9	BW	16
9	BW	19
9	BW	20
9	BW	34
9	R	69
9	R	70
9	BW	79
10	K	ALL
11	YR	ALL
13	WR	ALL
14	P	ALL

05 General
