Female

Make

Rover

Model

400 Electrical Library

Year

1998 model year on

Section

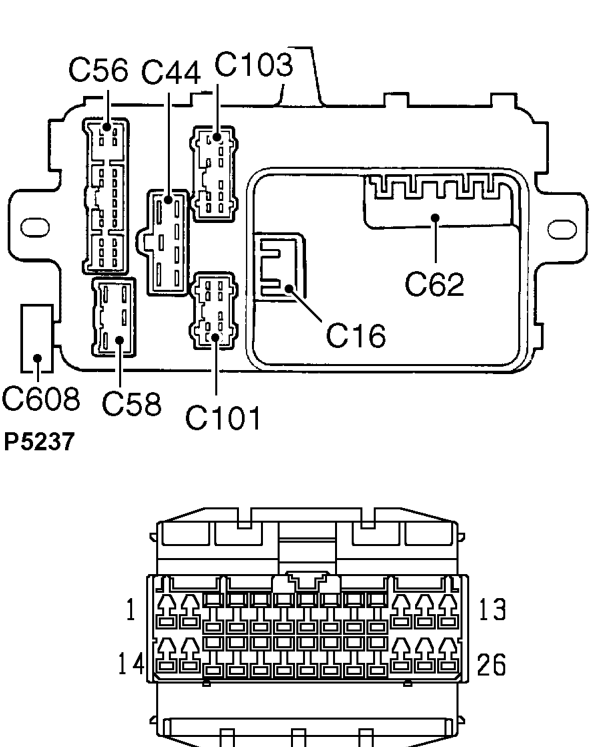

C0062 › Female

ConnectorsFemale · page 1 of 2

Multi-function unit

Female

GREY

Behind passenger compartment fusebox

Cav	Col	CCT
13	YR	ALL
14	UP	64
15	GB	ALL
16	GY	ALL
17	GW	69
17	GW	70
17	GB	79
17	GB	80
18	RB	ALL
19	UR	30
19	Y	30
19	RY	69
19	RY	70

Cav Col CCT

1 YU ALL 2 UW 69 3 US ALL 4 UY ALL 5 BS 40 6 UG ALL 8 GW ALL 9 O 64 10 P 64 12 R 9 12 R 40 12 GO 69 12 R 70 12 R 80

05 General
