Male
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section
- C0065 › Male
ConnectorsMale

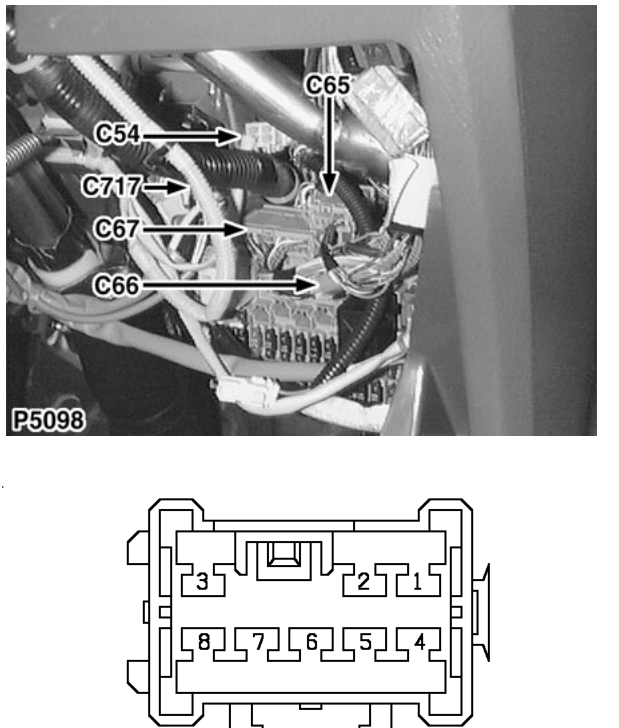

Main harness to fascia harness
Male
LIGHT GREY
Behind RH side of fascia
| Cav | Col | CCT |
|---|---|---|
| 1 | G | 70 |
| 2 | LG | 70 |
| 3 | LGW | 70 |
| 4 | GY | 70 |
| 5 | GU | 70 |
| 6 | GB | 70 |
| 7 | GW | 70 |
| 8 | GR | 70 |
