Female
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section
- C0068 › Female
ConnectorsFemale

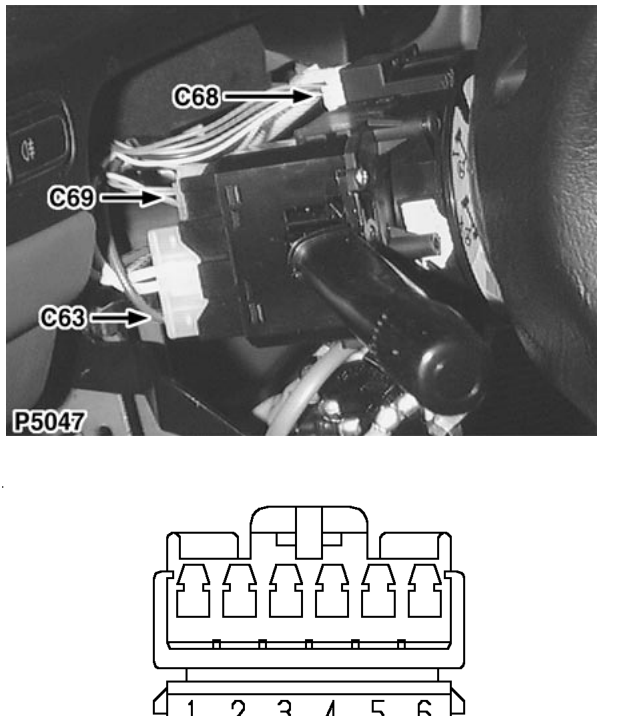

Rotary coupler
Female
WHITE
Behind driver’s airbag module
| Cav | Col | CCT |
|---|---|---|
| 1 | LGR | 21 |
| 1 | B | 24 |
| 1 | B | 42 |
| 2 | YB | 21 |
| 2 | G | 24 |
| 2 | G | 42 |
| 3 | UG | 21 |
| 4 | UG | ALL |
| 5 | K | 42 |
| 5 | W | 80 |
| 6 | W | 42 |
| 6 | K | 80 |
