Male

Make

Rover

Model

400 Electrical Library

Year

1998 model year on

Section

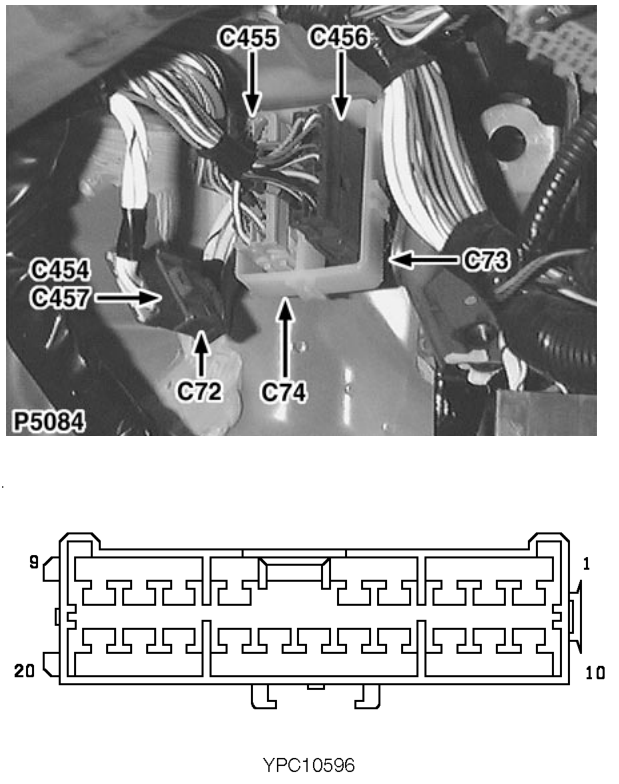

C0073 › Male

ConnectorsMale

Main harness to engine compartment harness

Male

BROWN

Under LH side of fascia

Cav	Col	CCT
1	YW	11
2	UR	30
3	BW	79
4	UY	79
5	WU	79
6	GO	ALL
7	BW	79
8	GR	79
9	BG	79
10	YU	79
11	GB	79

Cav	Col	CCT
12	RB	4
12	G	19
13	U	79
14	UW	79
15	UY	79
16	K	79
17	NW	21
18	BY	79
19	GW	4
19	N	21
20	LGR	4
20	NU	21
