Female
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section
- C0101 › Female
ConnectorsFemale

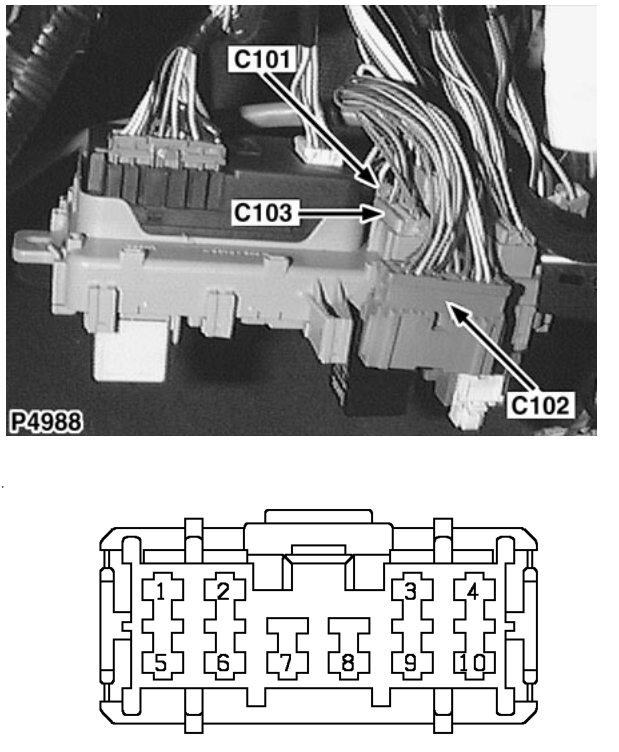

Passenger compartment fusebox
Female
GREEN
Behind passenger compartment fusebox
| Cav | Col | CCT |
|---|---|---|
| 2 | WY | ALL |
| 3 | UB | ALL |
| 4 | WY | 26 |
| 8 | GB | 28 |
| 9 | YB | 28 |
| 10 | WG | 25 |
