Male

Make

Rover

Model

400 Electrical Library

Year

1998 model year on

Section

C0102 › Male

ConnectorsMale · page 1 of 2

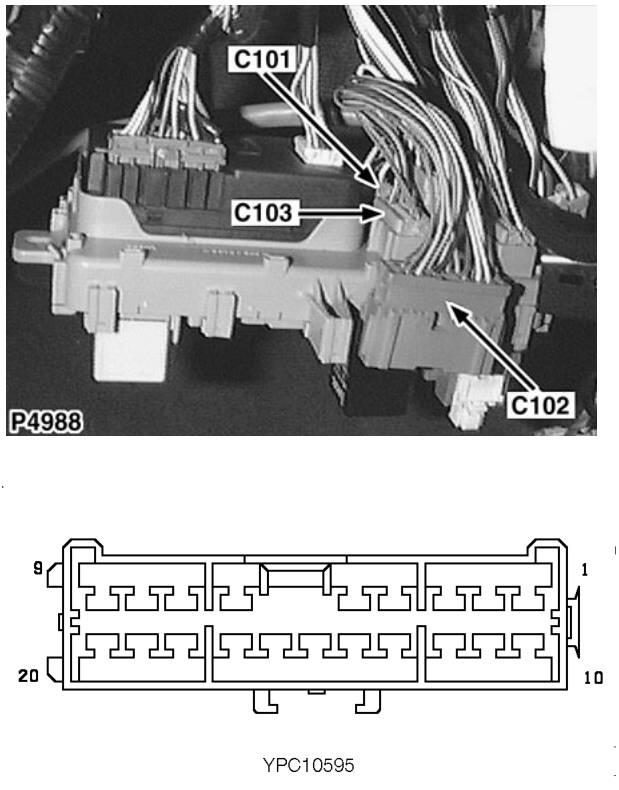

Body harness to fascia harness

Male

BLUE

Behind passenger compartment fusebox

Cav	Col	CCT
6	GR	74
6	YU	75
6	GR	77
6	YU	78
7	BG	25
7	GR	75
7	GR	78
8	BG	25
8	GR	74
8	GR	77
9	UB	14
9	GR	75
9	GR	78

Cav Col CCT

1 UW 14 2 YW 14 2 YR 15 3 YW 15 3 UG 74 3 UG 77 4 SB 74 4 RG 75 4 SB 77 4 RG 78 5 YU 74 5 NB 75 5 YU 77 5 NB 78

05 General
