Female
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section

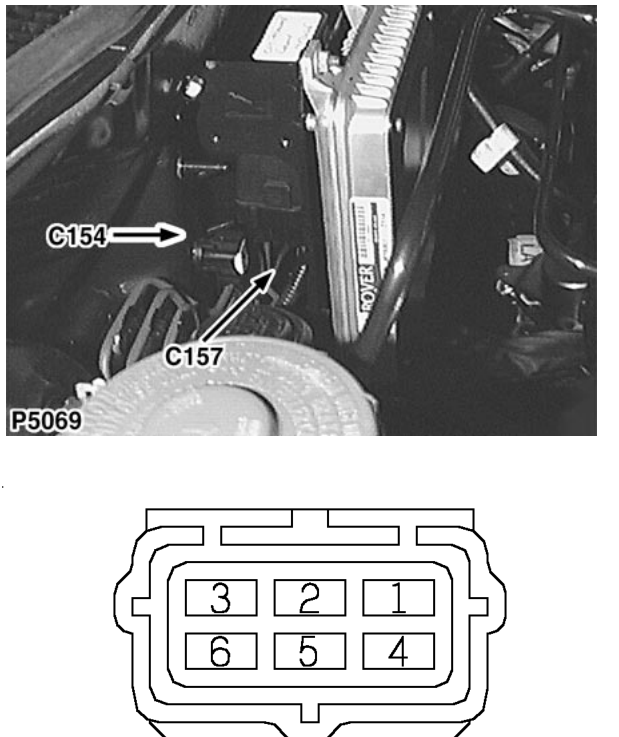

- C0154 › Female
ConnectorsFemale
Modular engine management (MEMS) relay module
Female
BLACK
Top of bulkhead - centre
| Cav | Col | CCT |
|---|---|---|
| 1 | BP | 71 |
| 2 | GK | 71 |
| 3 | WK | 71 |
| 4 | BW | 71 |
| 5 | BG | 71 |
| 6 | WR | 71 |
