Female
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section
- C0172 › Female
ConnectorsFemale

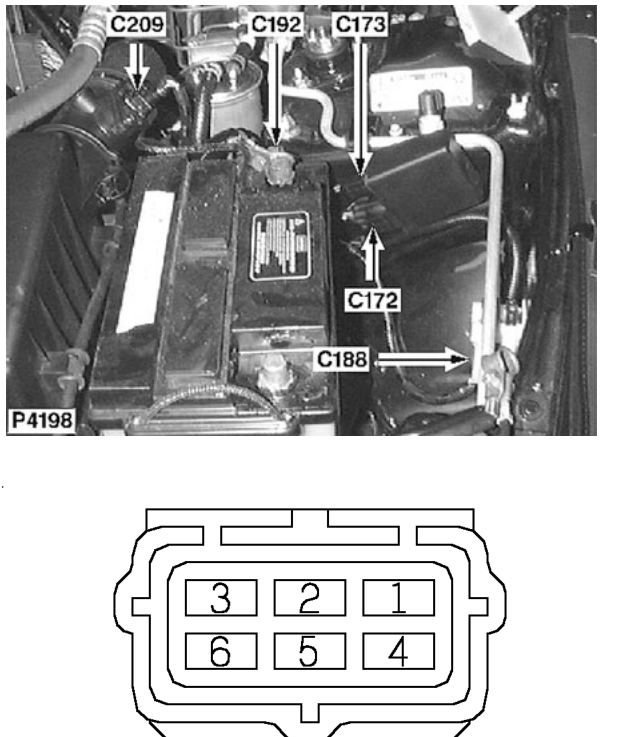

A/C relay module - L Series
Female
BLACK
LH side of engine compartment
| Cav | Col | CCT |
|---|---|---|
| 1 | NO | 34 |
| 1 | NO | 35 |
| 2 | SU | 34 |
| 2 | SU | 35 |
| 3 | UW | 34 |
| 3 | UY | 35 |
| 4 | NO | 34 |
| 4 | NO | 35 |
| 5 | UB | 34 |
| 5 | UB | 35 |
