Rover 400 Electrical Library (1998 model year on)05 · Connectors
05 · General

Female

Make
Rover
Model
400 Electrical Library
Year
1998 model year on
Section
C0176 › Female
ConnectorsFemale

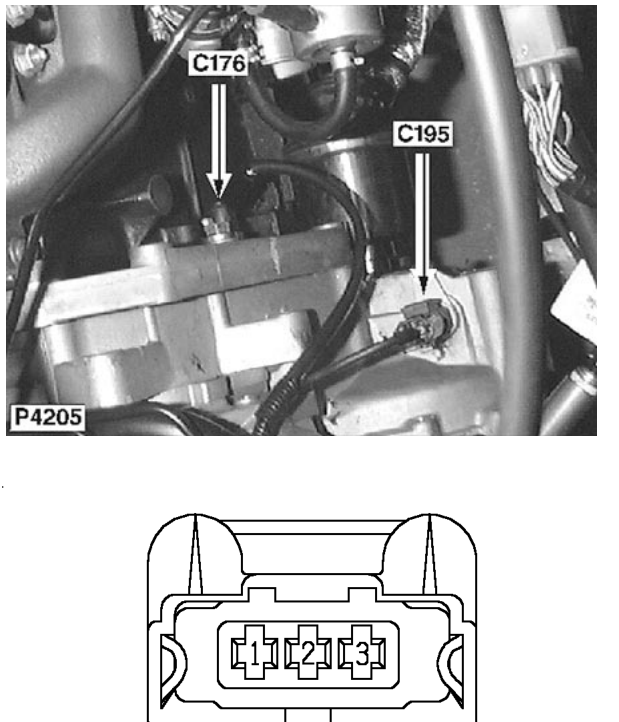

Diagram

Crankshaft sensor - L Series

Female

BLACK

Rear LH side of engine

CavColCCT
1K16
1K34
2Y16
2Y34
3B16
3B34
