Female

Make

Rover

Model

400 Electrical Library

Year

1998 model year on

Section

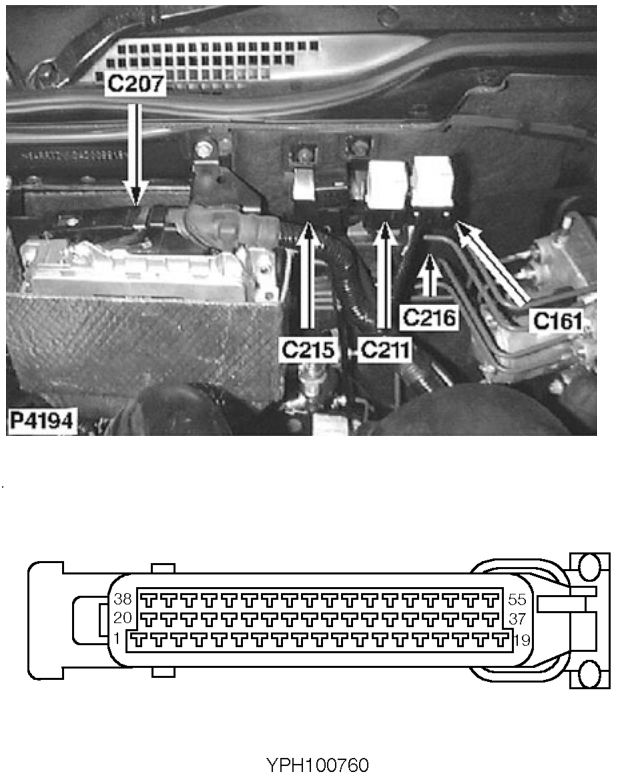

C0207 › Female

ConnectorsFemale · page 1 of 2

Engine control unit

Female

BLACK

Rear of engine compartment - centre

Cav	Col	CCT
1	WP	16
2	WP	16
3	W	16
4	GO	16
5	N	ALL
6	SR	16
8	O	16
9	UB	34
10	NS	16
11	GR	ALL
12	B	ALL

Cav	Col	CCT
13	KB	16
14	R	16
16	NO	16
17	NO	16
18	B	ALL
19	B	ALL
21	GO	16
25	LGR	16
26	GW	ALL
27	WG	ALL
29	WO	16

05 General
