Female

Make

Rover

Model

400 Electrical Library

Year

1998 model year on

Section

C0221 › Female

ConnectorsFemale

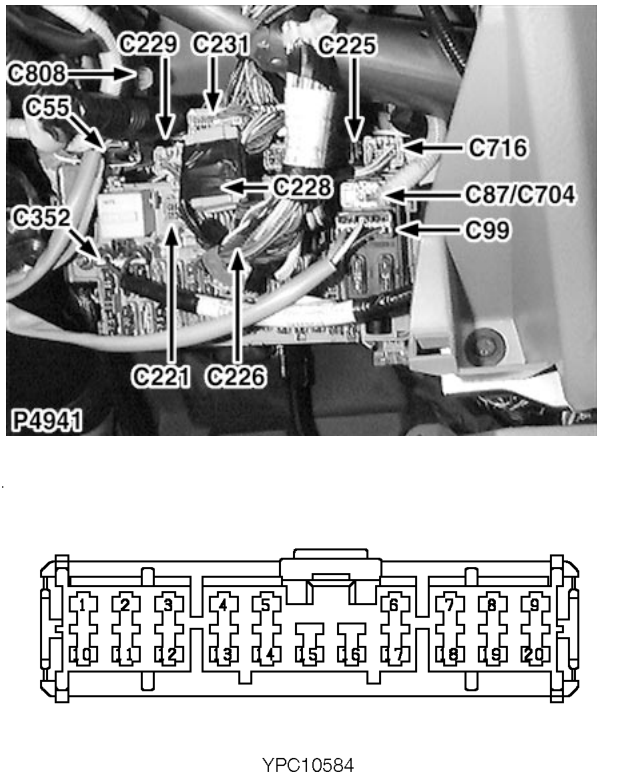

Passenger compartment fusebox

Female

GREEN

Behind passenger compartment fusebox cover

Cav	Col	CCT
1	GO	ALL
2	GU	ALL
4	GW	ALL
5	GR	ALL
6	GY	ALL
7	B	ALL
8	B	ALL
9	BY	ALL
10	WU	ALL
11	RB	ALL
13	RY	ALL
14	YR	ALL

Cav	Col	CCT
15	RG	ALL
16	Y	ALL
17	RW	ALL
18	WU	ALL
19	BY	14
