Female

Make

Rover

Model

400 Electrical Library

Year

1998 model year on

Section

C0225 › Female

ConnectorsFemale · page 1 of 2

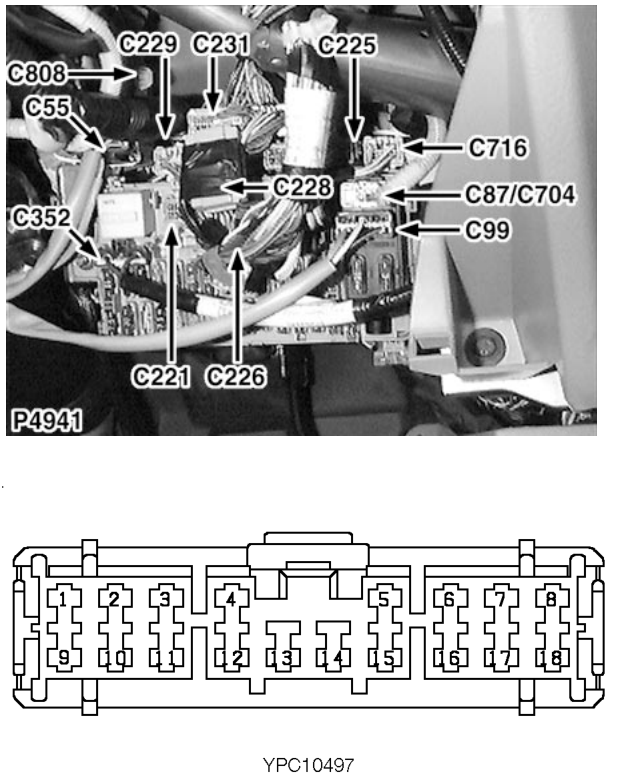

Fascia harness to body harness

Female

BLUE

Behind passenger compartment fusebox cover

Cav	Col	CCT
1	UW	14
2	YR	14
2	YW	14
3	UG	2
3	YW	14
4	RG	1
4	SB	2
5	NB	1
5	YU	2
6	YU	1
6	GR	2

Cav	Col	CCT
7	GR	1
7	BG	25
8	GR	2
8	BG	25
9	GR	1
9	UB	14
10	WY	2
10	YB	14
11	B	1
11	SW	2

05 General
