Female

Make

Rover

Model

400 Electrical Library

Year

1998 model year on

Section

C0231 › Female

ConnectorsFemale · page 1 of 2

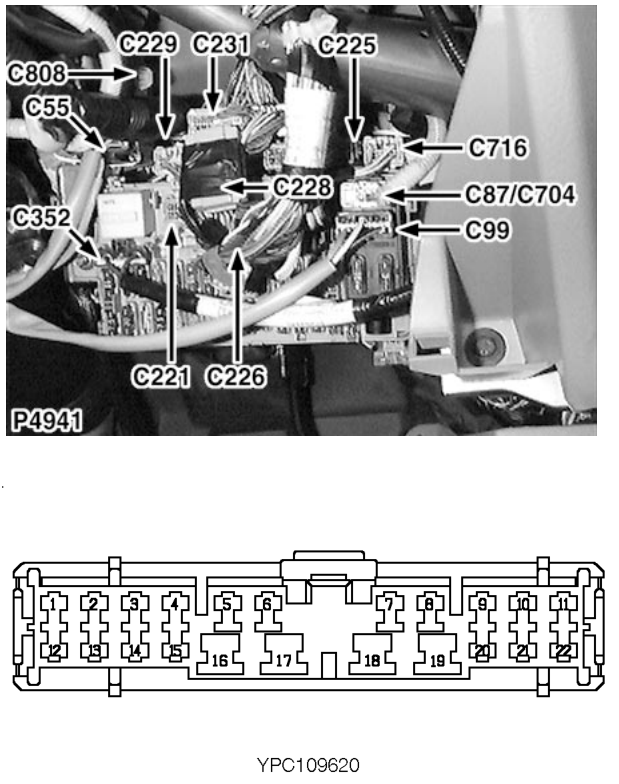

Fascia harness to main harness

Female

LIGHT GREY

Behind passenger compartment fusebox cover

Cav	Col	CCT
1	UR	1
1	YU	43
2	RY	1
2	UR	2
3	U	1
3	RY	2
4	YG	1
4	U	2
5	WB	1
5	YG	2
6	UY	1
6	WB	2

Cav	Col	CCT
7	RW	1
7	UY	2
8	RW	2
8	UB	14
9	UW	14
9	GR	18
9	GO	21
9	BY	22
10	YB	14
10	GO	18
10	GO	22
