Female
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section
- C0246 › Female
ConnectorsFemale

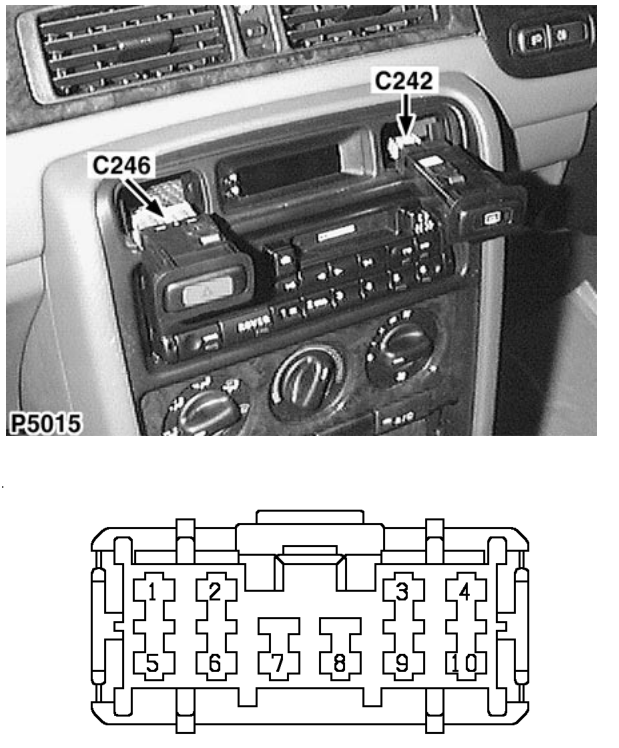

Hazard warning switch
Female
LIGHT GREY
Next to clock/radio display
| Cav | Col | CCT |
|---|---|---|
| 1 | GY | ALL |
| 2 | GB | ALL |
| 3 | GU | ALL |
| 4 | GO | ALL |
| 5 | B | ALL |
| 6 | RB | ALL |
| 7 | GW | ALL |
| 8 | WB | ALL |
| 9 | Y | ALL |
