Male
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section
- C0301 › Male
ConnectorsMale

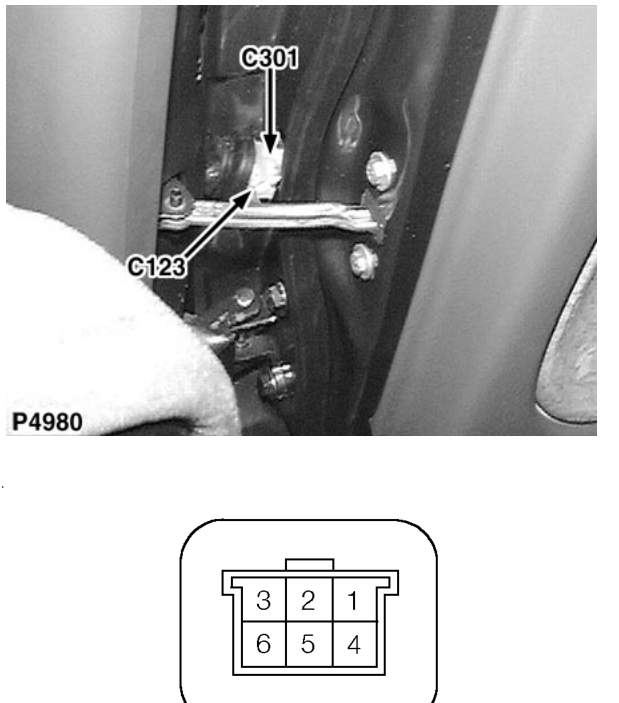

Body harness to rear door harness
Male
NATURAL
Behind rear door trim panel
| Cav | Col | CCT |
|---|---|---|
| 1 | WR | 29 |
| 2 | YR | 29 |
| 3 | GB | 26 |
| 4 | GY | 26 |
| 5 | G | 26 |
