Male
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section
- C0321 › Male
ConnectorsMale

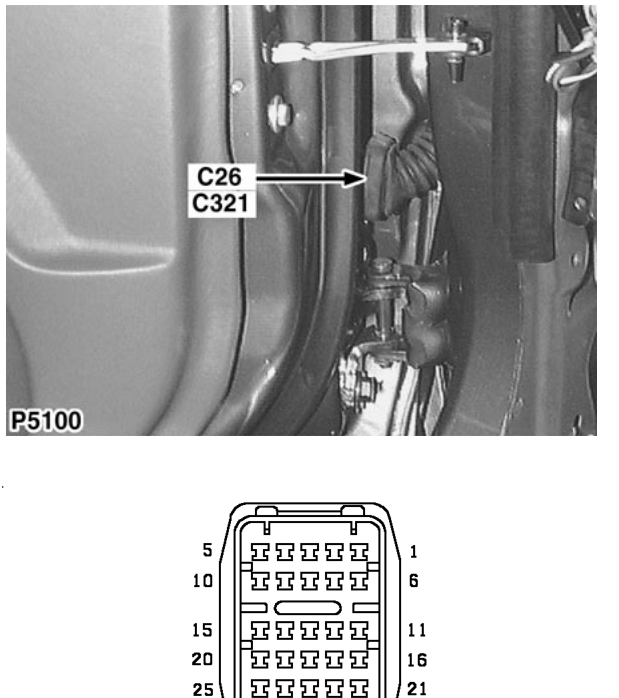

Passenger door harness to body harness
Male
DARK GREY
Behind LH front door trim panel
| Cav | Col | CCT |
|---|---|---|
| 3 | NB | ALL |
| 4 | RG | ALL |
| 5 | B | ALL |
| 9 | O | ALL |
| 10 | YR | ALL |
| 11 | YB | 14 |
| 15 | WR | ALL |
| 16 | YR | 14 |
| 17 | UR | 15 |
| 20 | UG | ALL |
| 21 | YW | 14 |
| 22 | UG | ALL |
| 25 | UY | ALL |
