Male
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section
- C0337 › Male
ConnectorsMale
Drivers door harness to body harness
Male
DARK GREY

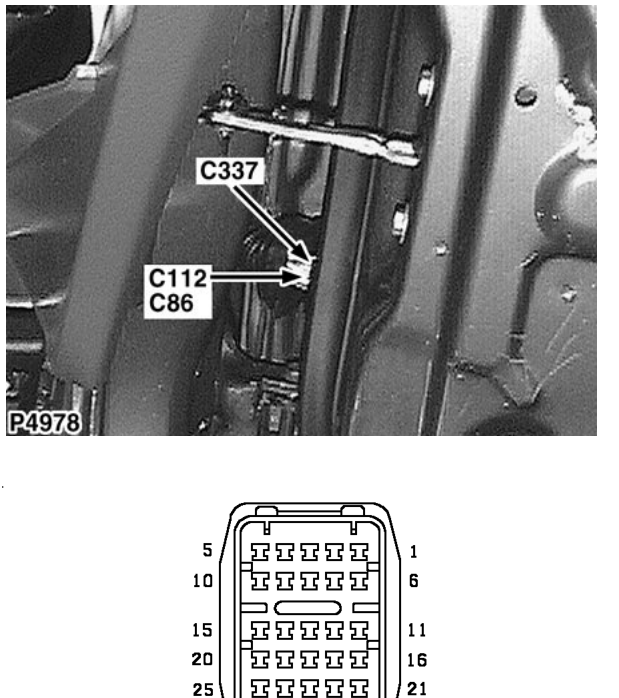

Behind driver’s door trim panel
| Cav | Col | CCT |
|---|---|---|
| 1 | RU | ALL |
| 2 | RW | ALL |
| 3 | SB | ALL |
| 4 | UG | ALL |
| 5 | B | ALL |
| 9 | U | ALL |
| 10 | YR | ALL |
| 11 | UB | 14 |
| 12 | WB | ALL |
| 15 | WR | ALL |
| 16 | UW | 14 |
| 17 | UR | 15 |
| 21 | YW | 14 |
