Female

Make

Rover

Model

400 Electrical Library

Year

1998 model year on

Section

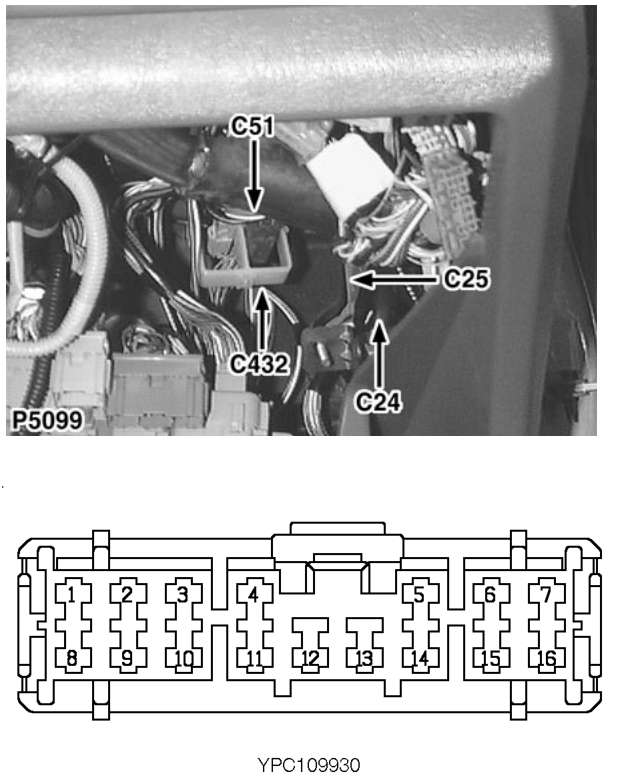

C0432 › Female

ConnectorsFemale

Engine compartment harness to main harness

Female

BROWN

Behind RH side of fascia

Cav	Col	CCT
1	GB	80
2	UR	80
3	RW	80
4	RU	80
5	RB	80
6	GY	80
7	B	80
8	GB	80
9	U	80
10	UW	80
11	UY	80

Cav	Col	CCT
12	GR	80
13	BG	80
14	UR	30
15	YU	80
16	GB	80
