Rover 400 Electrical Library (1998 model year on)05 · Connectors
05 · General

Female

Make
Rover
Model
400 Electrical Library
Year
1998 model year on
Section
C0458 › Female
ConnectorsFemale

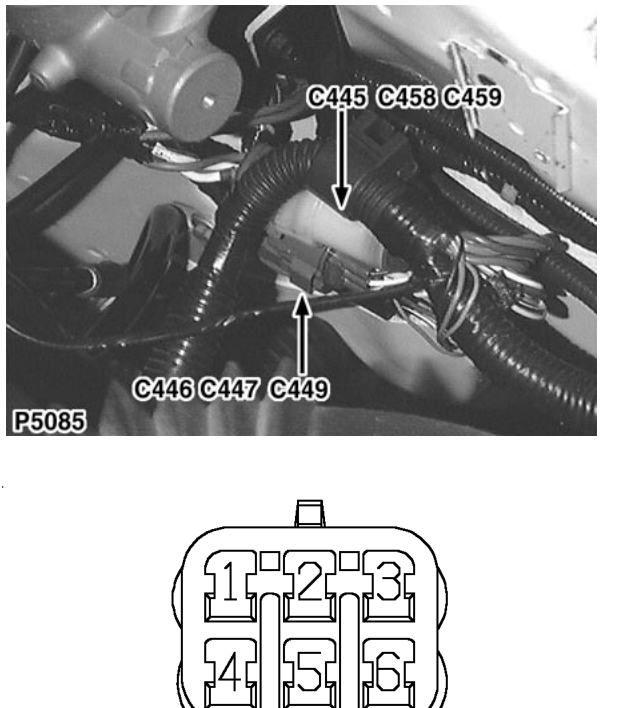

Diagram

Engine compartment harness to main harness

Female

NATURAL

Rear LH side of engine compartment

CavColCCT
1NW20
2P20
3SU20
4UP20
