Female
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section

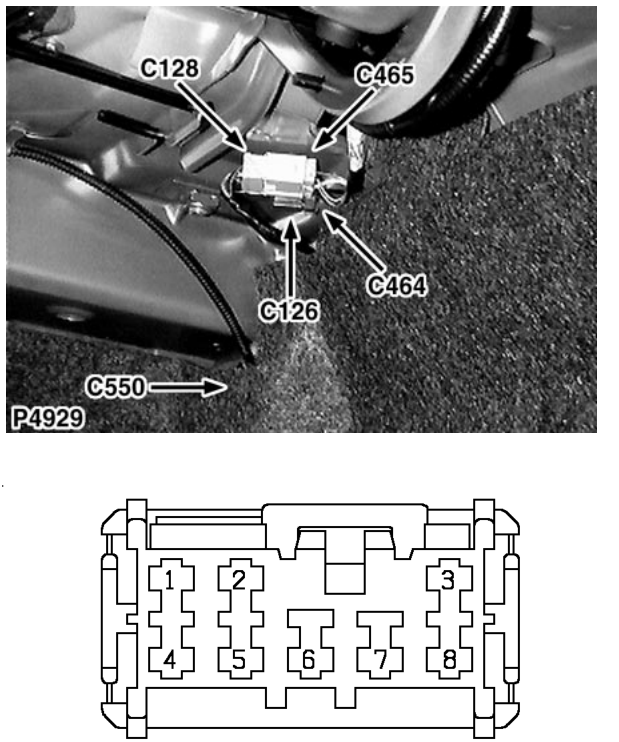

- C0465 › Female
ConnectorsFemale
Body harness to trunk lid harness
Female
LIGHT GREY
Base of ’C’ post RH side
| Cav | Col | CCT |
|---|---|---|
| 1 | G | 7 |
| 2 | LGB | 7 |
| 3 | WR | 76 |
| 4 | GB | 7 |
| 5 | G | 76 |
| 6 | BY | 76 |
| 7 | RB | 76 |
| 8 | GW | 76 |
