C0501 (page 3 of 4)

Make

Rover

Model

400 Electrical Library

Year

1998 model year on

Section

C0501

ConnectorsC0501 · page 3 of 4

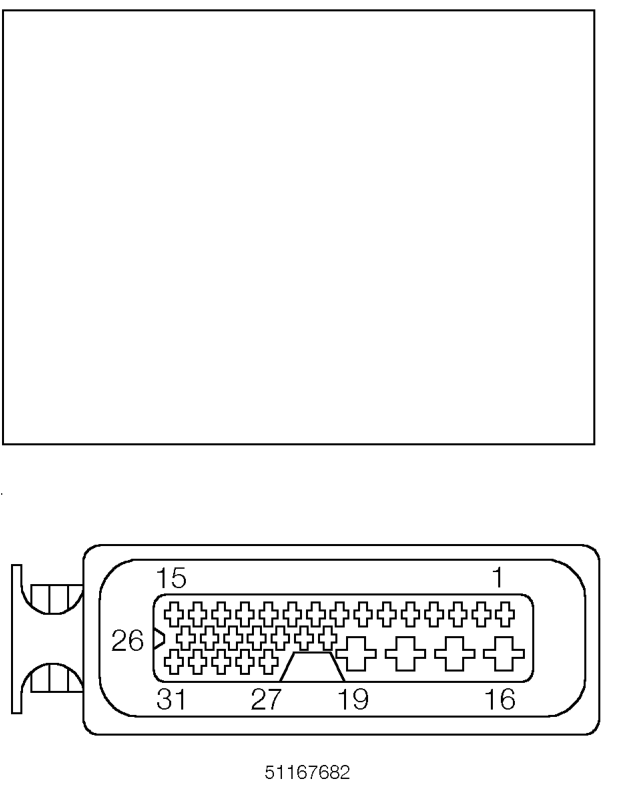

ABS modulator

BLACK

Rear RH side of engine compartment

Cav	Col	CCT
1	W	58
1	W	59
3	W	58
3	W	59
4	Y	58
4	Y	59
4	Y	59
5	Y	58
5	Y	59
5	Y	59
6	R	58
6	R	59

Cav	Col	CCT
7	R	58
7	R	59
8	G	58
8	G	59
9	G	58
9	G	59
11	K	58
11	K	59
12	LGR	58
12	LGR	59
14	GW	58
14	GW	59
