Female
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section
- C0510 › Female
ConnectorsFemale

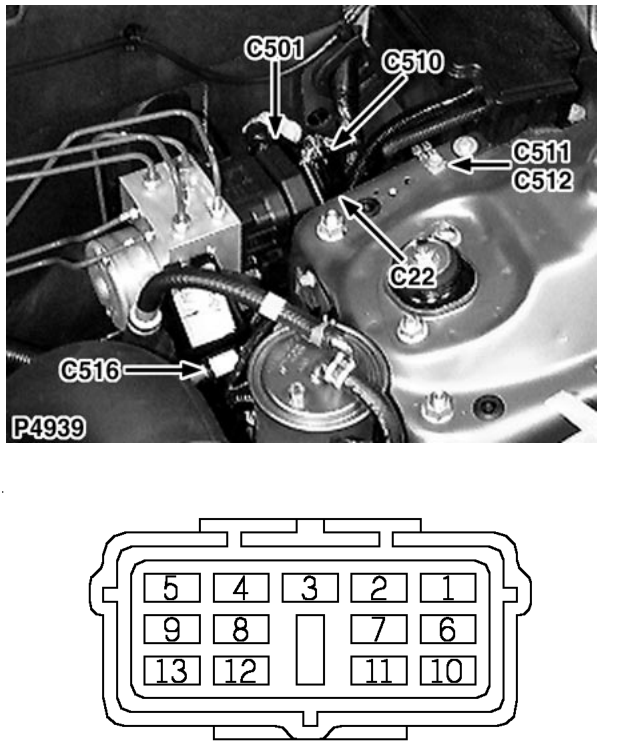

ABS harness to main harness - RHD
Female
BLACK
Rear LH side of engine compartment
| Cav | Col | CCT |
|---|---|---|
| 1 | GK | ALL |
| 2 | G | ALL |
| 3 | G | ALL |
| 4 | W | ALL |
| 5 | W | ALL |
| 9 | UR | ALL |
| 10 | GW | ALL |
| 11 | K | ALL |
| 13 | LGR | ALL |
