Male
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section
- C0542 › Male
ConnectorsMale

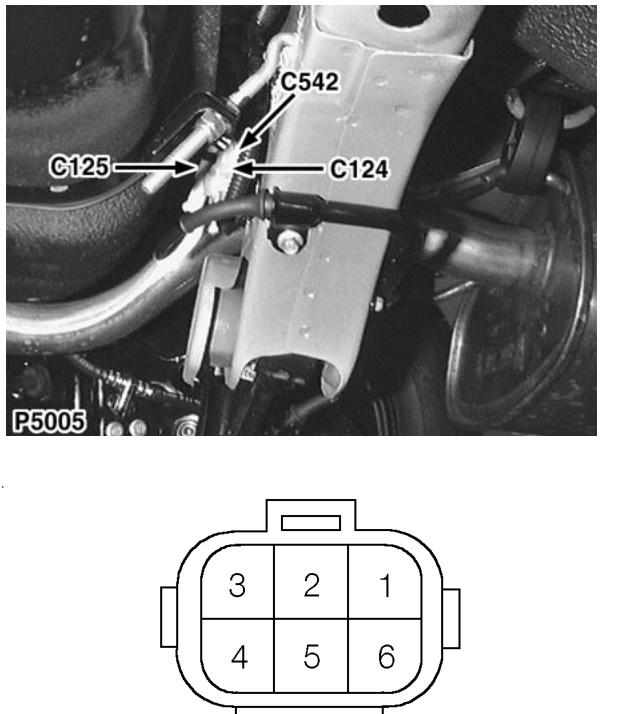

Fuel tank harness to body harness
Male
NATURAL
Beneath rear of vehicle RH side
| Cav | Col | CCT |
|---|---|---|
| 1 | GR | ALL |
| 2 | GB | ALL |
| 3 | WP | ALL |
| 4 | B | ALL |
| 5 | B | ALL |
