Female
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section

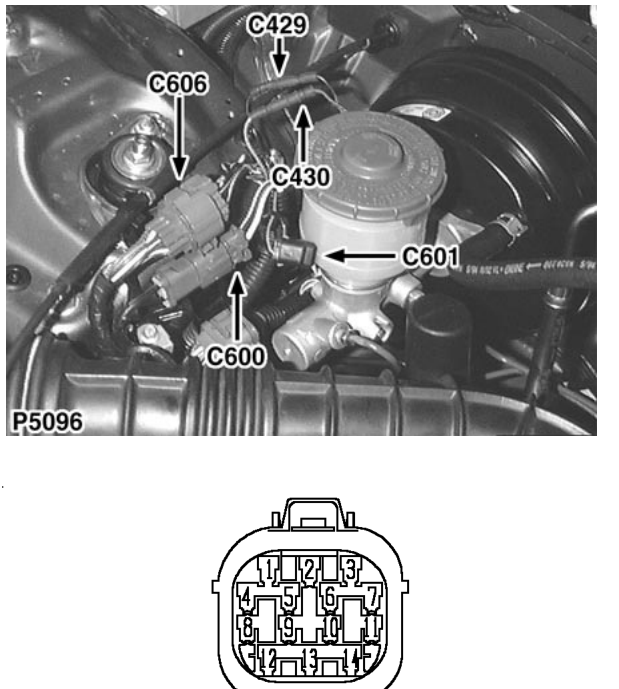

- C0606 › Female
ConnectorsFemale
Engine compartment harness to engine harness
Female
GREY
RH suspension turret
| Cav | Col | CCT |
|---|---|---|
| 1 | R | 69 |
| 2 | WU | 69 |
| 3 | BY | 69 |
| 5 | O | 69 |
| 6 | BY | 69 |
| 7 | YB | 69 |
| 8 | YG | 69 |
| 9 | B | 69 |
| 10 | G | 69 |
| 11 | YR | 69 |
| 12 | Y | 69 |
| 13 | GB | 69 |
| 14 | YB | 69 |
