Male
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section
- C0634 › Male

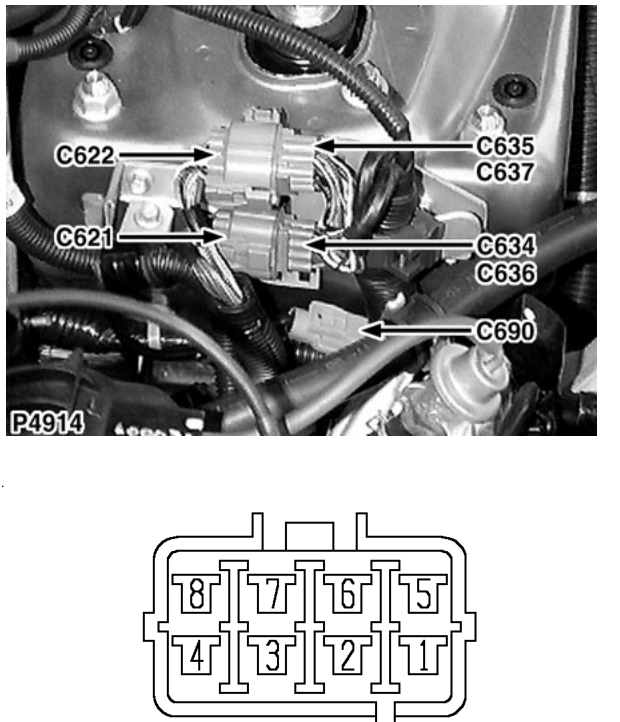

ConnectorsMale
Engine harness to main harness
Male
GREY
RH suspension turret
| Cav | Col | CCT |
|---|---|---|
| 1 | R | 1 |
| 1 | R | 2 |
| 2 | U | 1 |
| 2 | U | 2 |
| 3 | Y | 1 |
| 3 | Y | 2 |
| 4 | N | 1 |
| 4 | N | 2 |
| 5 | OU | 1 |
| 5 | OU | 2 |
| 6 | NB | 1 |
| 6 | NB | 2 |
| Cav | Col | CCT |
|---|---|---|
| 7 | WR | 1 |
| 7 | WR | 65 |
| 8 | NB | 1 |
| 8 | NB | 2 |
