Male
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section
- C0635 › Male
ConnectorsMale · page 1 of 2

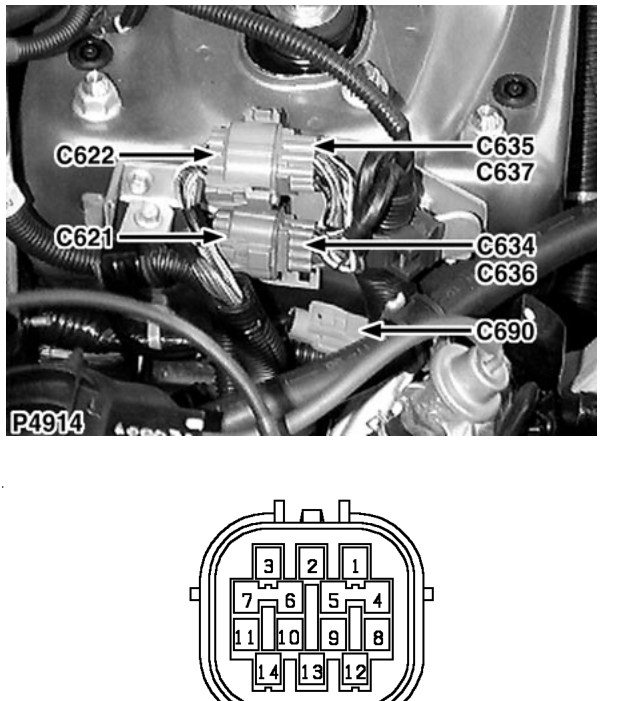

Engine harness to main harness
Male
GREY
LH suspension turret
| Cav | Col | CCT |
|---|---|---|
| 1 | O | 1 |
| 1 | R | 65 |
| 2 | BW | 1 |
| 2 | WU | 2 |
| 3 | BU | 1 |
| 3 | BY | 2 |
| 4 | U | 1 |
| 5 | YR | 1 |
| 5 | UW | 4 |
| 5 | UW | 6 |
| Cav | Col | CCT |
|---|---|---|
| 6 | RG | 1 |
| 6 | BY | 4 |
| 6 | BY | 6 |
| 7 | GW | 1 |
| 7 | YB | 2 |
| 8 | YG | 1 |
| 8 | YG | 2 |
| 9 | YU | 1 |
| 9 | B | 2 |
