Male

Make

Rover

Model

400 Electrical Library

Year

1998 model year on

Section

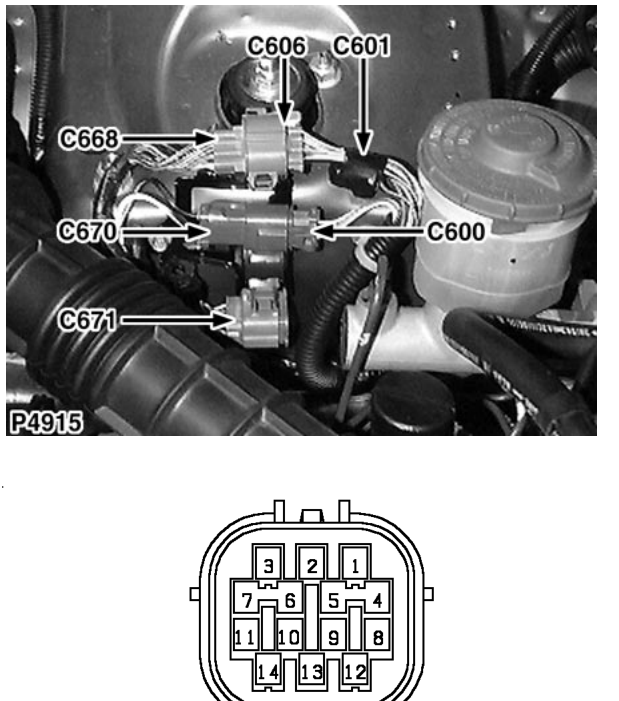

C0668 › Male

ConnectorsMale

Engine harness to main harness

Male

GREY

Rear RH side of engine compartment

Cav	Col	CCT
8	YG	ALL
9	B	1
9	YU	2
10	G	1
10	GB	2
11	YR	1
11	RB	2
12	Y	1
12	WR	2
13	GB	1
13	RW	2
14	YB	1
14	RY	2

Cav Col CCT

1 R 1 1 O 2 2 WU 1 2 BW 65 3 BY 1 3 BU 2 4 U 2 5 YR 2 5 UW 3 5 UW 5 6 RG 2 6 BY 3 6 BY 5 7 YB 1
