Female
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section
- C0692 › Female
ConnectorsFemale

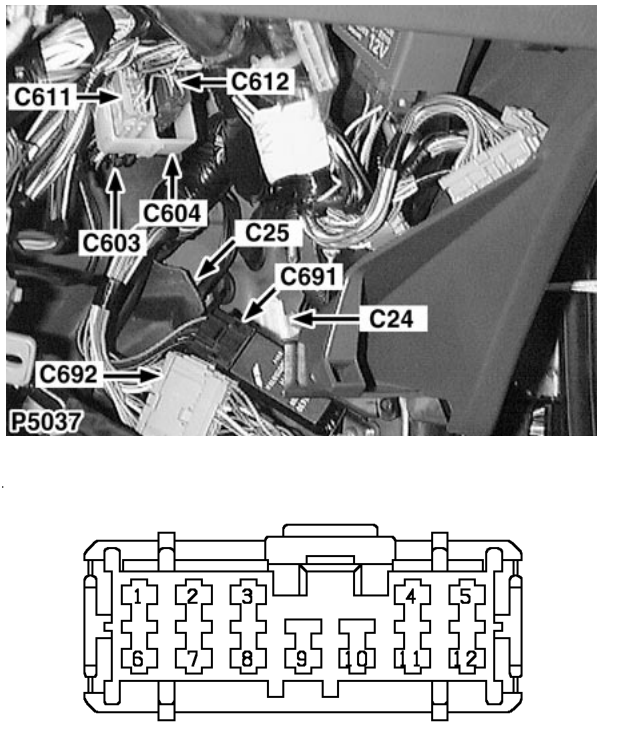

Engine compartment harness to main harness
Female
ORANGE
Behind passenger compartment fusebox cover
| Cav | Col | CCT |
|---|---|---|
| 1 | UG | 9 |
| 2 | GW | 9 |
| 3 | UR | 9 |
| 4 | P | 9 |
| 5 | GY | 9 |
| 6 | UW | 9 |
| 7 | BR | 9 |
| 9 | NB | 9 |
| 10 | GO | 9 |
| 11 | S | 9 |
| 12 | UY | 9 |
