Female
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section
- C0706 › Female
ConnectorsFemale

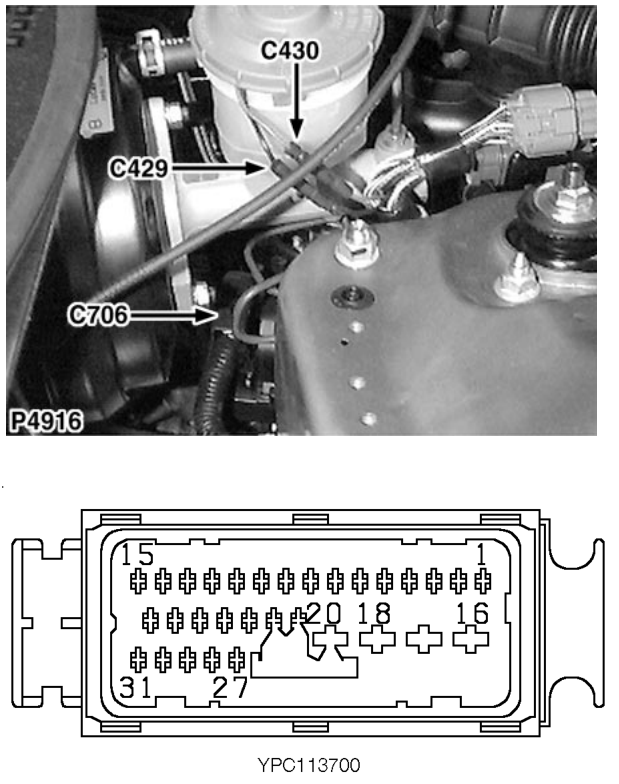

ABS control unit
Female
BLACK
Rear RH side of engine compartment
| Cav | Col | CCT |
|---|---|---|
| 1 | UY | 9 |
| 3 | GY | 9 |
| 4 | G | 9 |
| 5 | GB | 9 |
| 6 | NB | 9 |
| 7 | GO | 9 |
| 8 | S | 9 |
| 9 | P | 9 |
| 11 | UG | 9 |
| 12 | UW | 9 |
| 14 | GW | 9 |
| 15 | BR | 9 |
| 16 | B | 9 |
| Cav | Col | CCT |
|---|---|---|
| 17 | WU | 9 |
| 18 | WG | 9 |
| 19 | B | 9 |
| 21 | UR | 9 |
