JACKING, SUPPORTING AND TOWING

Jacking, supporting and towing

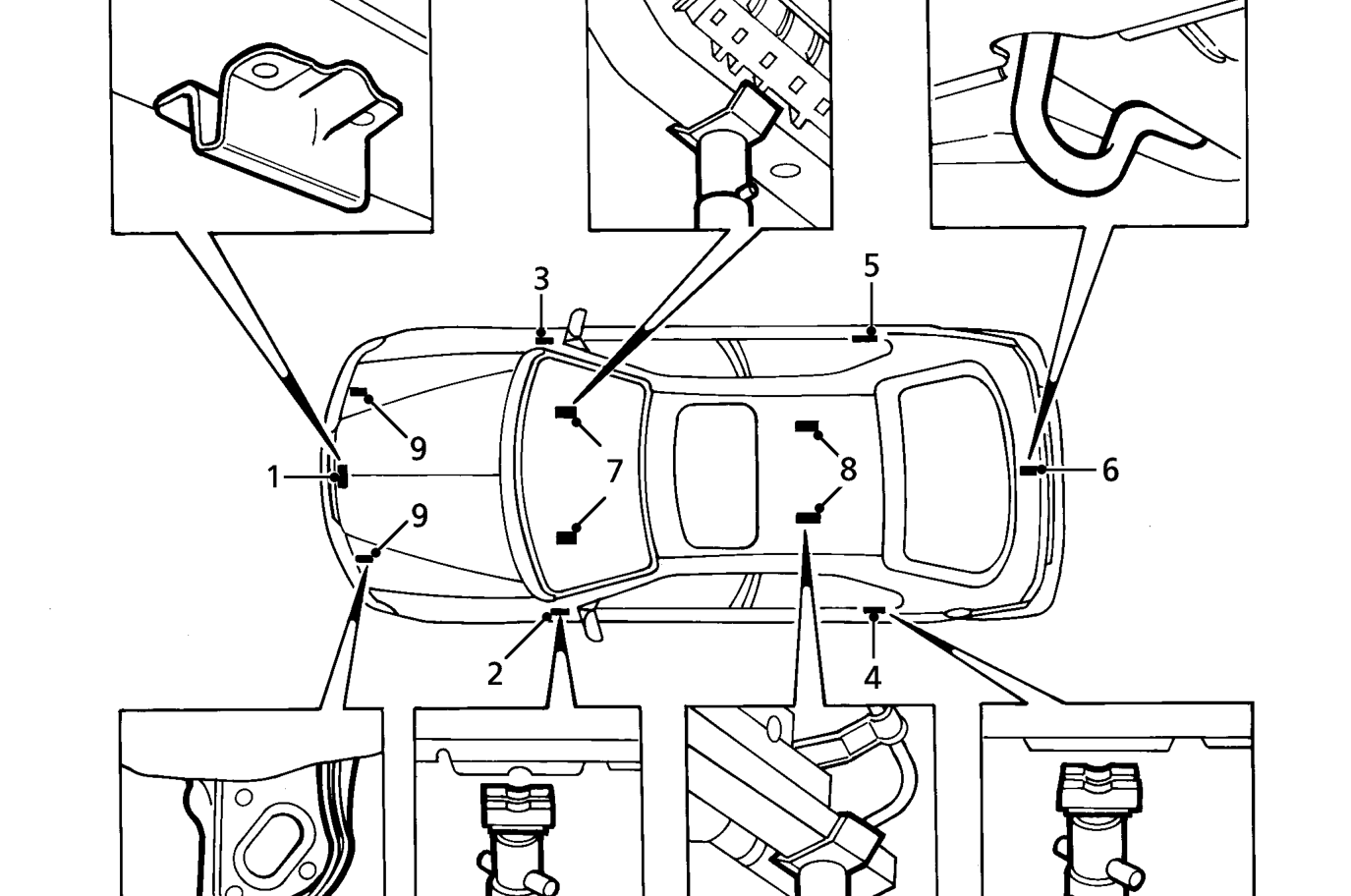

  1. Central jacking point - front
  2. LH sill reinforced bracket front
  3. RH sill reinforced bracket front
  4. LH sill reinforced bracket rear
  5. RH sill reinforced bracket rear

WARNING: In accordance with normal workshop practice, and to avoid the possibility of damage or personal injury, work must not be carried out on or under a vehicle when it is supported solely on a jack. Place safety supports under the sill reinforced jacking areas (2, 3, 4 or 5).

  1. Central jacking point and lashing/towing eye - rear
  2. Longitudinal members - front
  3. Longitudinal members - rear
  4. Lashing/towing eyes - front

WARNING: Do not position a jack, jack stand or wheel free support under the suspension attachment points.
