POWER STEERING RACK

Service repair no - 57.10.01

Remove

Power steering rack – Service repair no - 57.10.01

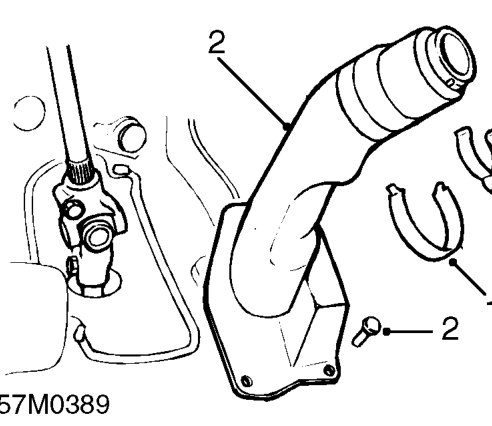

  1. Remove 2 clips securing column universal joint cover.
  2. Pull back driver’s footwell carpet and remove 2 studs securing cover to floor. Remove cover.
  3. Align road wheels to straight ahead position and remove starter key to lock the steering wheel.
Power steering rack – Align road wheels to straight ahead position and remove starter key to lock the steering w

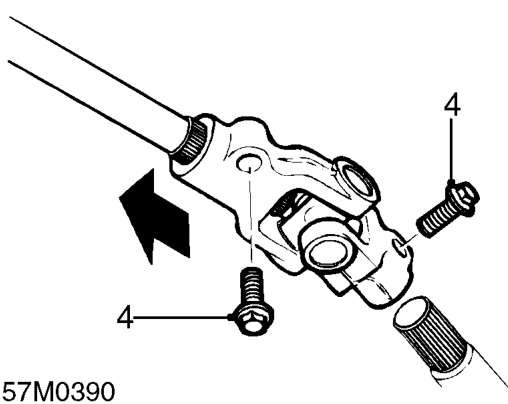

  1. Remove 2 bolts securing column universal joint, slide joint up column and disconnect from steering rack pinion shaft.
Power steering rack – Remove 2 bolts securing column universal joint, slide joint up column and disconnect from

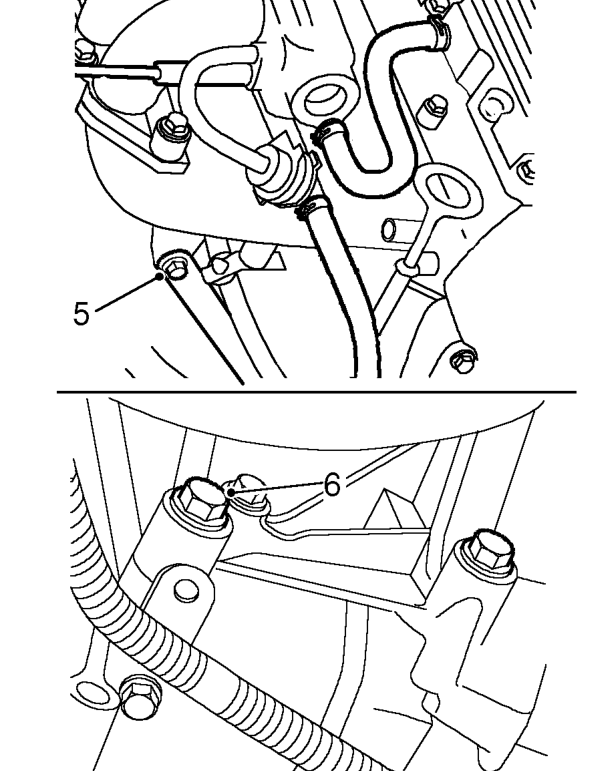

  1. Remove bolt securing engine steady bar to inlet manifold.
  2. Remove bolt securing engine steady bar to cylinder block.
Power steering rack – Remove bolt securing engine steady bar to cylinder block.

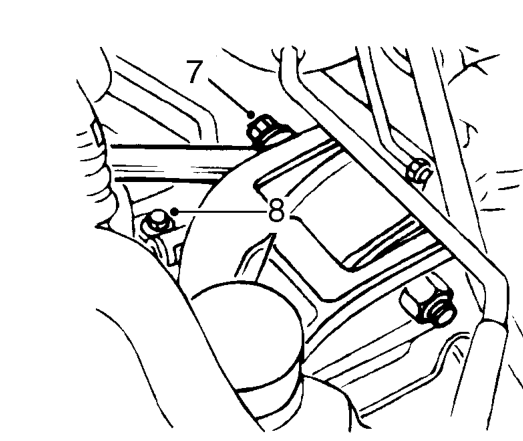

  1. Loosen engine rear mounting bracket through bolt.
  2. Move engine steady bar aside and remove bolt securing PAS pipe clip.
