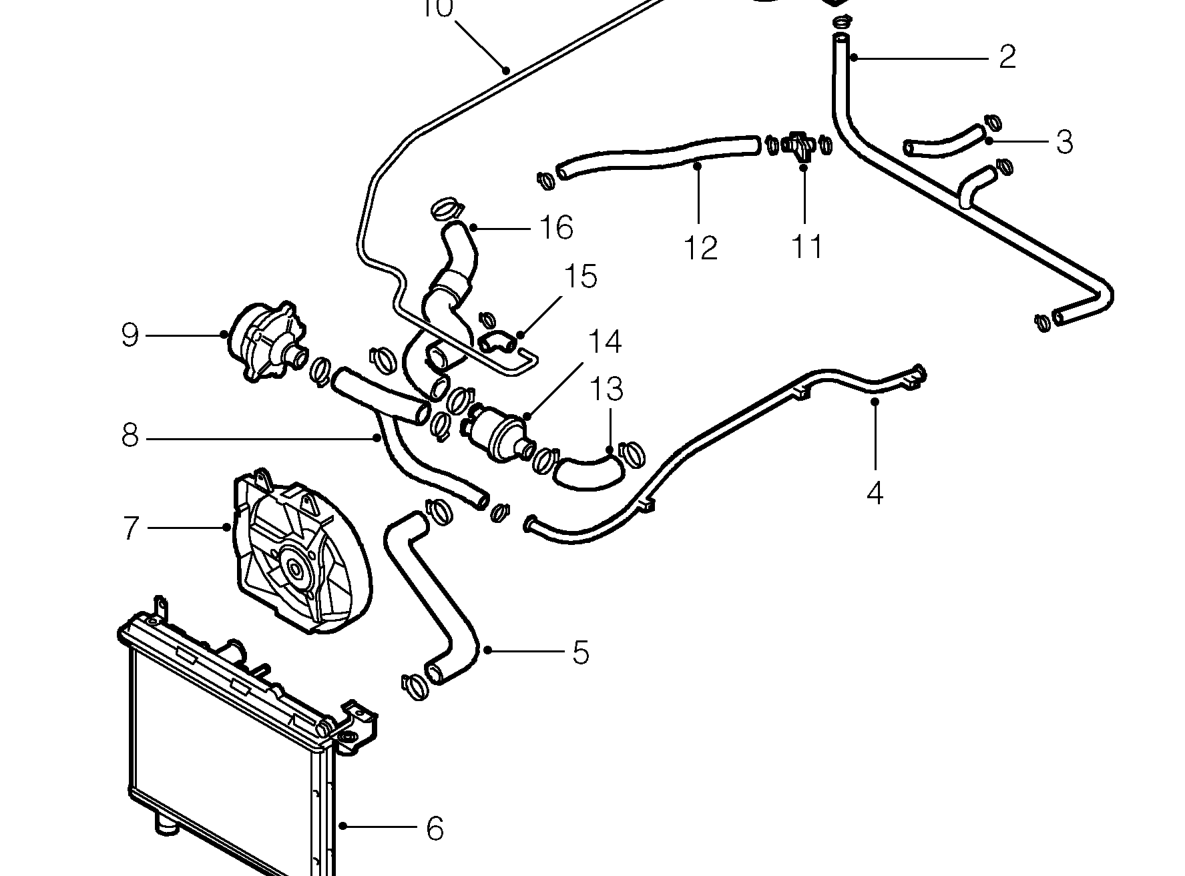

COOLING SYSTEM COMPONENTS

1. Expansion tank
2. Expansion tank to coolant rail
3. Hose - heater valve to heater
4. Coolant rail
5. Bottom hose
6. Radiator
7. Cooling fan and cowl
8. Hose - coolant pump to thermostat housing
9. Coolant pump
10. Coolant expansion pipe
11. Heater temperature control valve
12. Hose - engine to heater valve
13. Hose - oil cooler to thermostat housing
14. Thermostat housing
15. Pipe - expansion pipe to radiator
16. Top hose
