Engine - D SeriesValve clearance - up to 97.5 my · page 2 of 2
Diagram

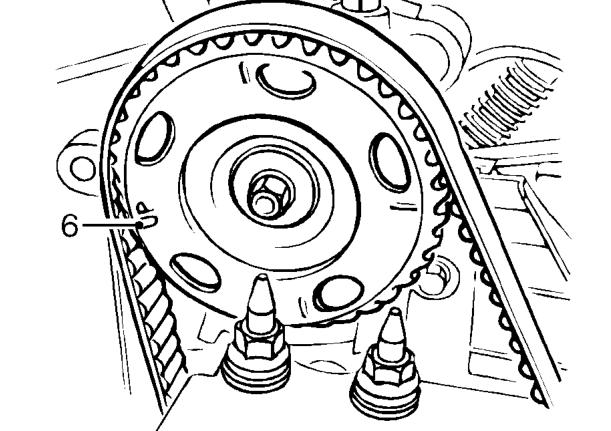

  1. Rotate crankshaft anti-clockwise 180° .

NOTE: ’UP’ mark on camshaft pulley will be at exhaust side.

  1. Check valve clearances on No.3 cylinder.

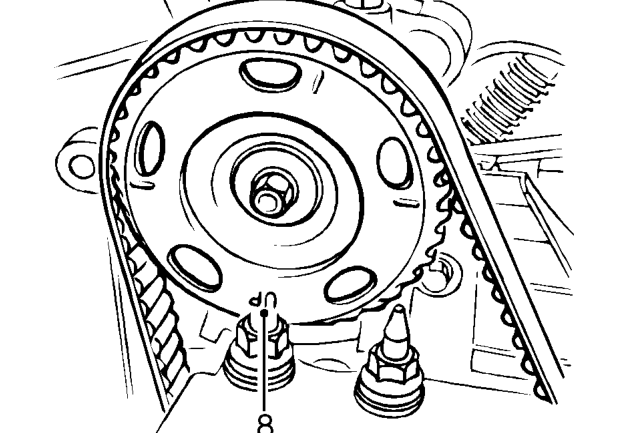

Check valve clearances on No.3 cylinder.
  1. Rotate crankshaft anti-clockwise 180° .

NOTE: ’UP’ mark on camshaft pulley will be at lower position.

  1. Check valve clearances on No.4 cylinder.

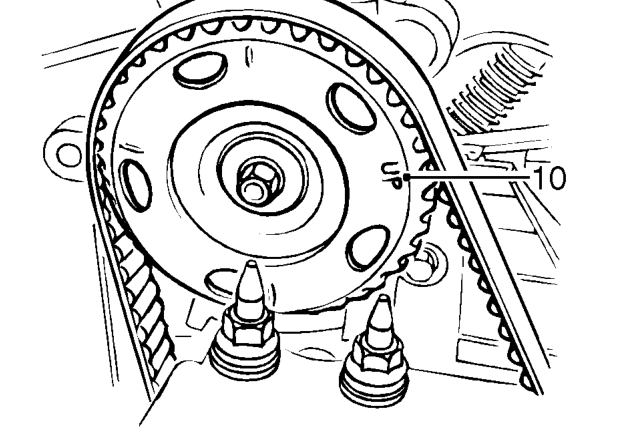

Check valve clearances on No.4 cylinder.
  1. Rotate crankshaft anti-clockwise 180° .

NOTE: ’UP’ mark on camshaft pulley will be at inlet side.

  1. Check valve clearances on No.2 cylinder.
  2. Fit timing belt upper cover. See Repairs.
