Engine management system - PGMFiThrottle cable adjust

THROTTLE CABLE ADJUST

Service repair no - 19.20.05

Adjust

  1. Before adjusting cable, make sure that it is correctly routed and operates smoothly.
  2. Ensure engine is at correct working temperature.

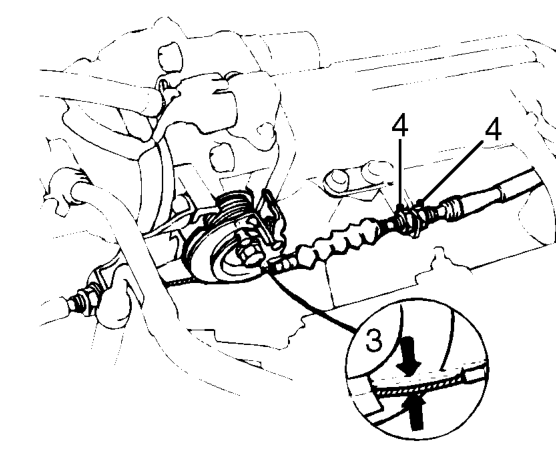

Throttle cable adjust – Ensure engine is at correct working temperature.
  1. Check cable free play at the throttle linkage. Cable deflection should be 10-12 mm.
  2. If cable is not within specification, loosen locknut, turn the adjusting nut until the adjustment is correct then tighten locknut.
  3. Operate throttle pedal and ensure that throttle opens fully.

IGNITION TIMING CHECK AND ADJUST

Service repair no - 18.20.15

Check

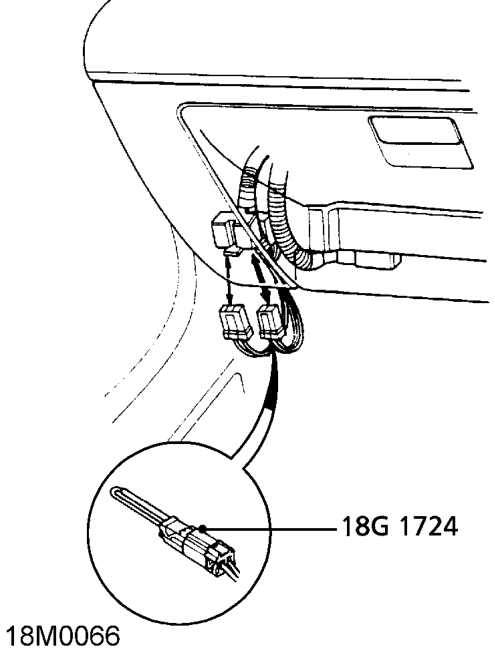

Ignition timing check and adjust – Service repair no - 18.20.15
  1. Locate the service check connector behind the glove box. Release the 2 pin connector and bridge the terminals using 18G 1724 .
