Engine compartment component locations

Make

Rover

Model

400 Workshop Manual

Year

1995–2000

Section

Description and operation › Engine compartment component locations

Engine management system - PGMFiEngine compartment component locations

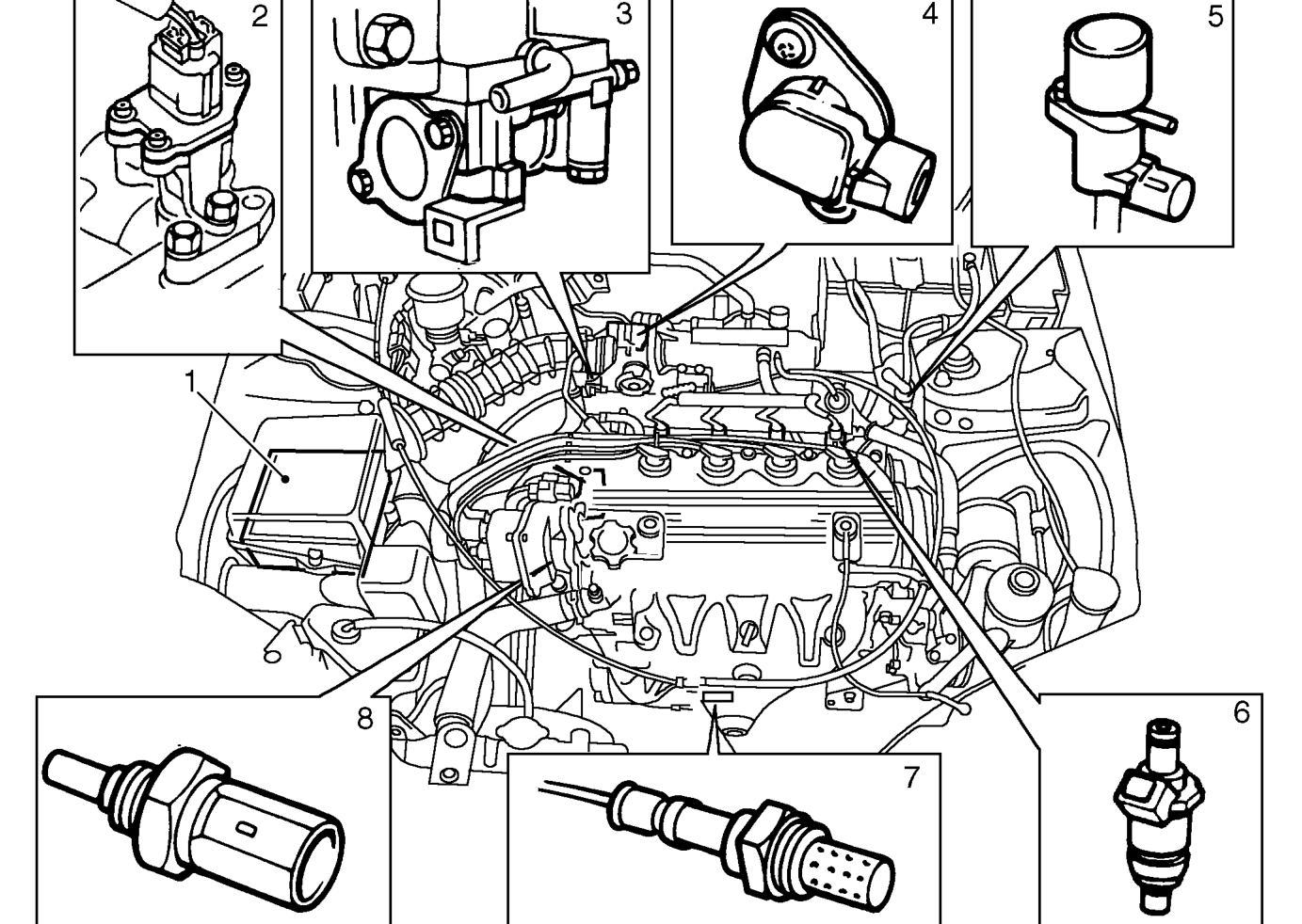

ENGINE COMPARTMENT COMPONENT LOCATIONS

Up to 97.5 MY illustrated

1. Air filter element
2. Vehicle speed sensor (VSS)
3. Fast idle thermo valve - Up to 97.5MY
4. Throttle position (TP) sensor
5. Purge control valve
6. Injectors
7. Oxygen sensor
8. Engine coolant temperature (ECT) sensor

Continued.....
