Description and operation › Fuel tank breathing system - ’L’ series

Fuel delivery systemFuel tank breathing system - ’L’ series

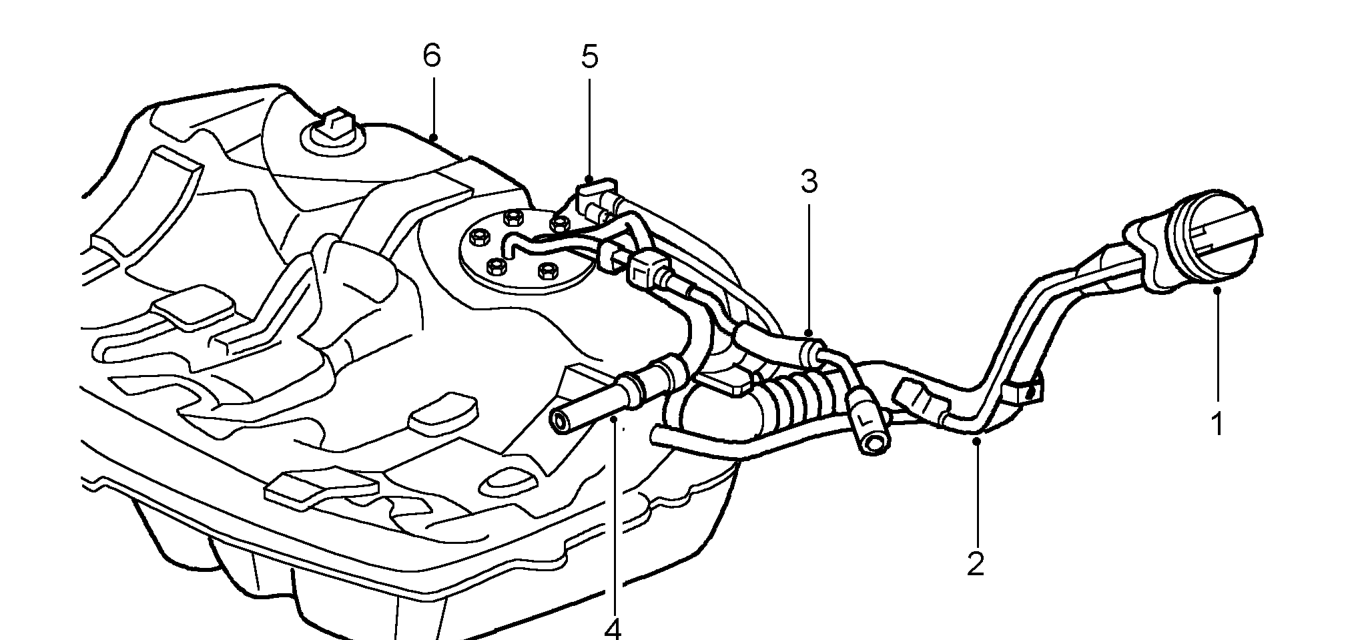

Fuel tank breathing system - ’L’ series

1. Filler cap
2. Filler neck breather pipe
3. Fuel feed pipe

FUEL TANK BREATHING SYSTEM

When filling the fuel tank, air trapped in the fuel tank by the rising fuel level is allowed to vent to the top of the filler neck by a separate breather pipe.

With the filler cap in place, fuel tank breathing is via a two-way breather valve which allows expanding fumes to exit the tank.

4. Fuel return pipe
5. 2-way breather valve
6. Fuel tank

13 Engine
