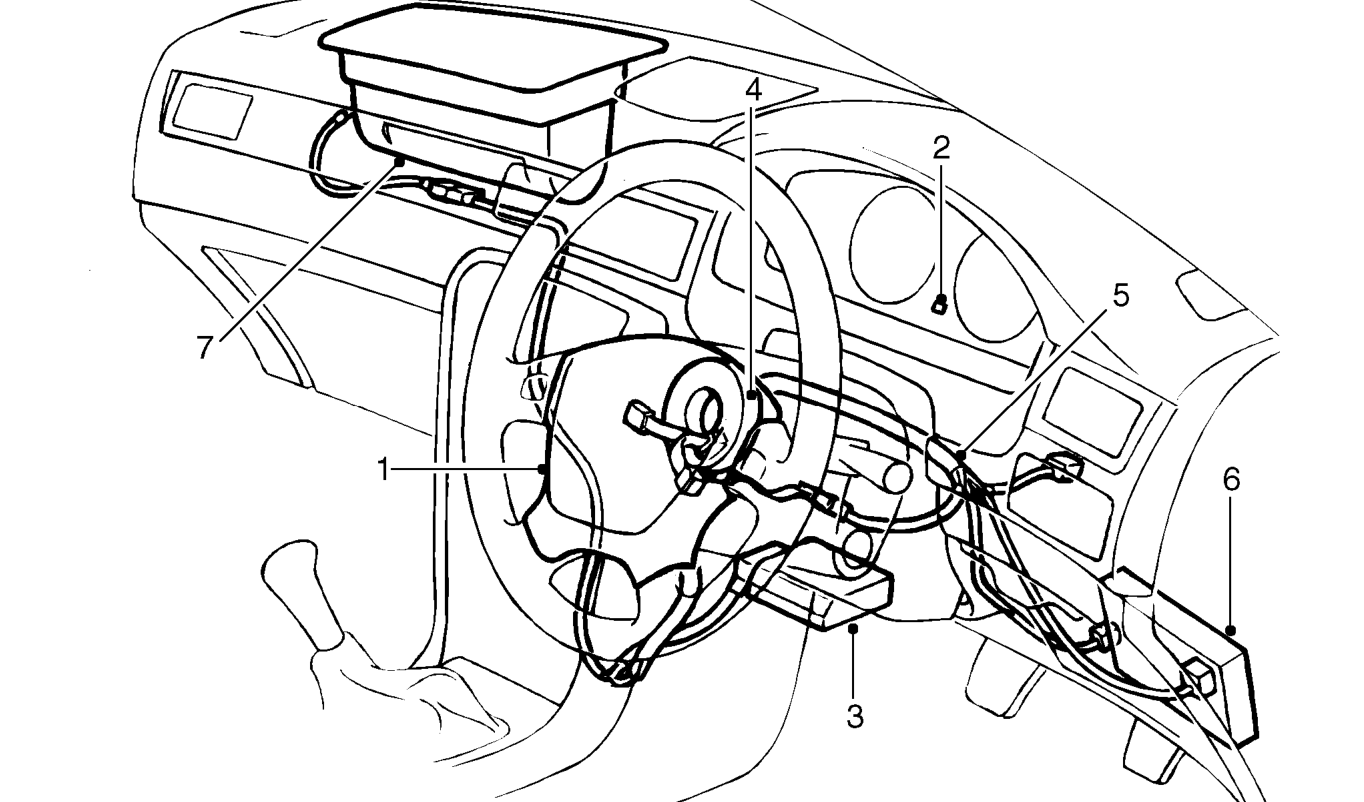

COMPONENT LOCATION - TWIN AIRBAG - ’D’ SERIES

NOTE: LHD type is symmetrical to RHD type.

1. Driver’s airbag module
2. SRS warning light
3. Control and diagnostic unit
4. Rotary coupler
5. SRS harness (YELLOW)
6. Passenger compartment fuse/relay box - fuse 15 and 25
7. Passenger’s airbag module
