WINDSCREEN WIPER COMPONENTS

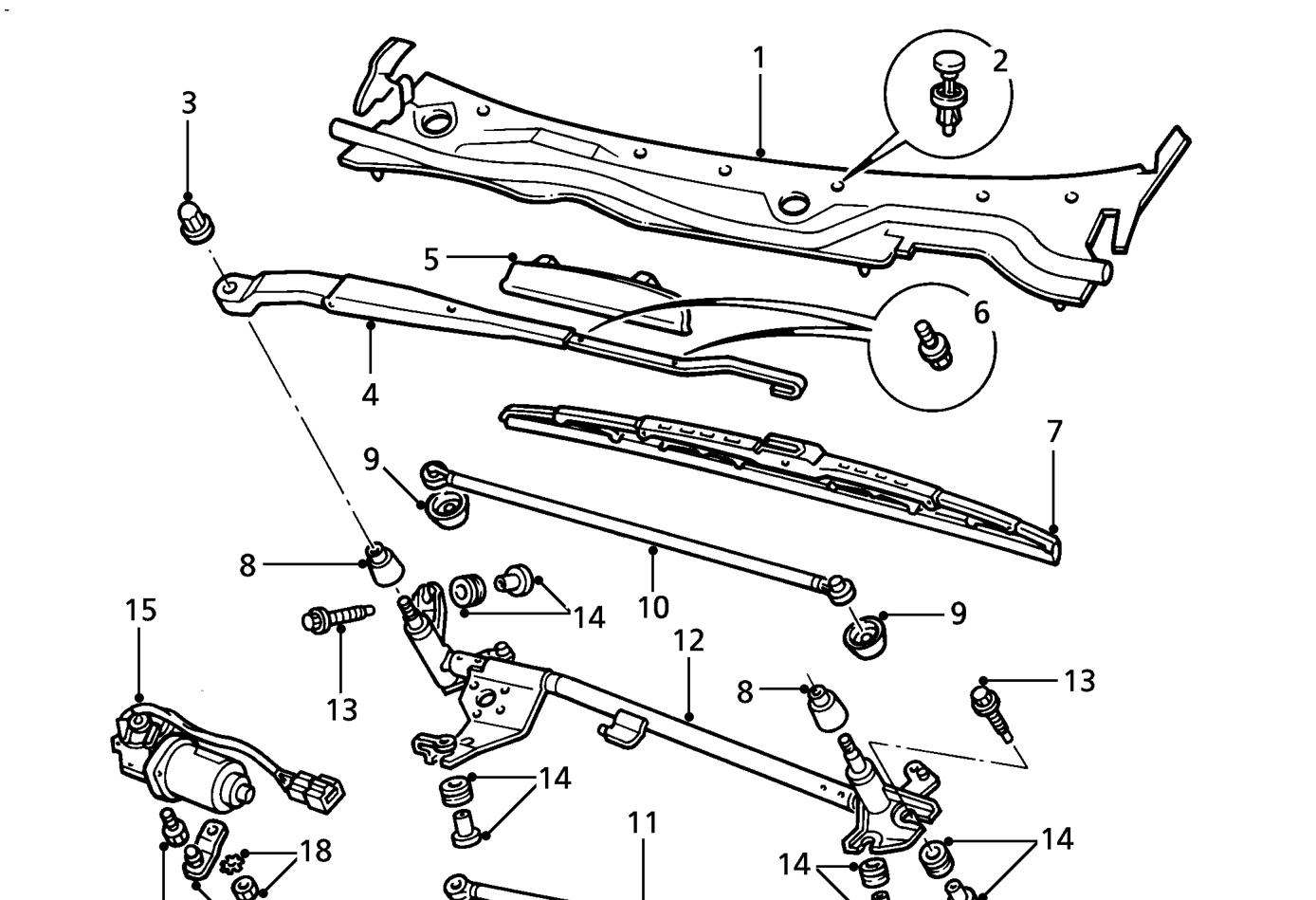

Windscreen wiper components
  1. Plenum air intake
  2. Securing stud
  3. Nut - windscreen wiper arm
  4. Arm - windscreen wiper
  5. Aerofoil
  6. Screws
  7. Blade - windscreen wiper
  8. Spindle cap
  9. Dust shield
  10. Connecting rod
  11. Operating rod
  12. Wheelbox assembly
  13. Mounting bolt
  14. Ferrule and mounting rubber
  15. Wiper motor
  16. Rotary link
  17. Mounting bolt
  18. Nut and washer
