Rover 600 Electrical Library05 · Connectors

05 · General

C002 horn(s) (page 2 of 2)

Make: Rover
Model: 600 Electrical Library
Section: C002 horn(s)

‹ Prev C002 horn(s)Next › C003 LH front direction indicator lamp (LHD) (PGM-FI)

ConnectorsC002 horn(s) · page 2 of 2

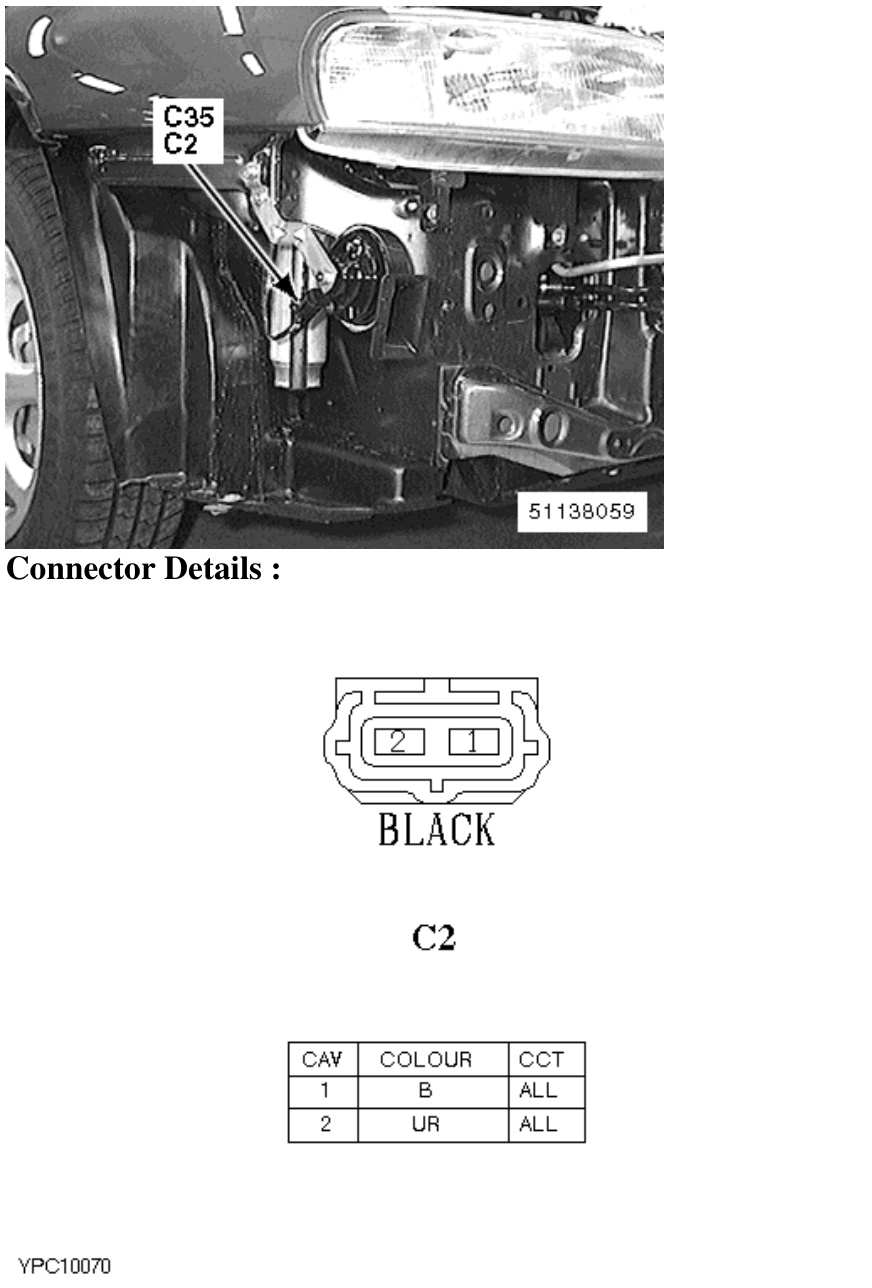

Description : HORN(S) (2.0L MEMS & Diesel) Location : Behind radiator LH side Photo Location :

Description : HORN(S) (2.0L MEMS & Diesel) Location : Behind radiator LH side Photo Lo

‹ Prev C002 horn(s)Next › C003 LH front direction indicator lamp (LHD) (PGM-FI)
