Rover 600 Electrical Library05 · Connectors

05 · General

C068 relay module (LHD) (page 2 of 2)

Make: Rover
Model: 600 Electrical Library
Section: C068 relay module (LHD)

‹ Prev C068 relay module (LHD)Next › C068 relay module (RHD)

ConnectorsC068 relay module (LHD) · page 2 of 2

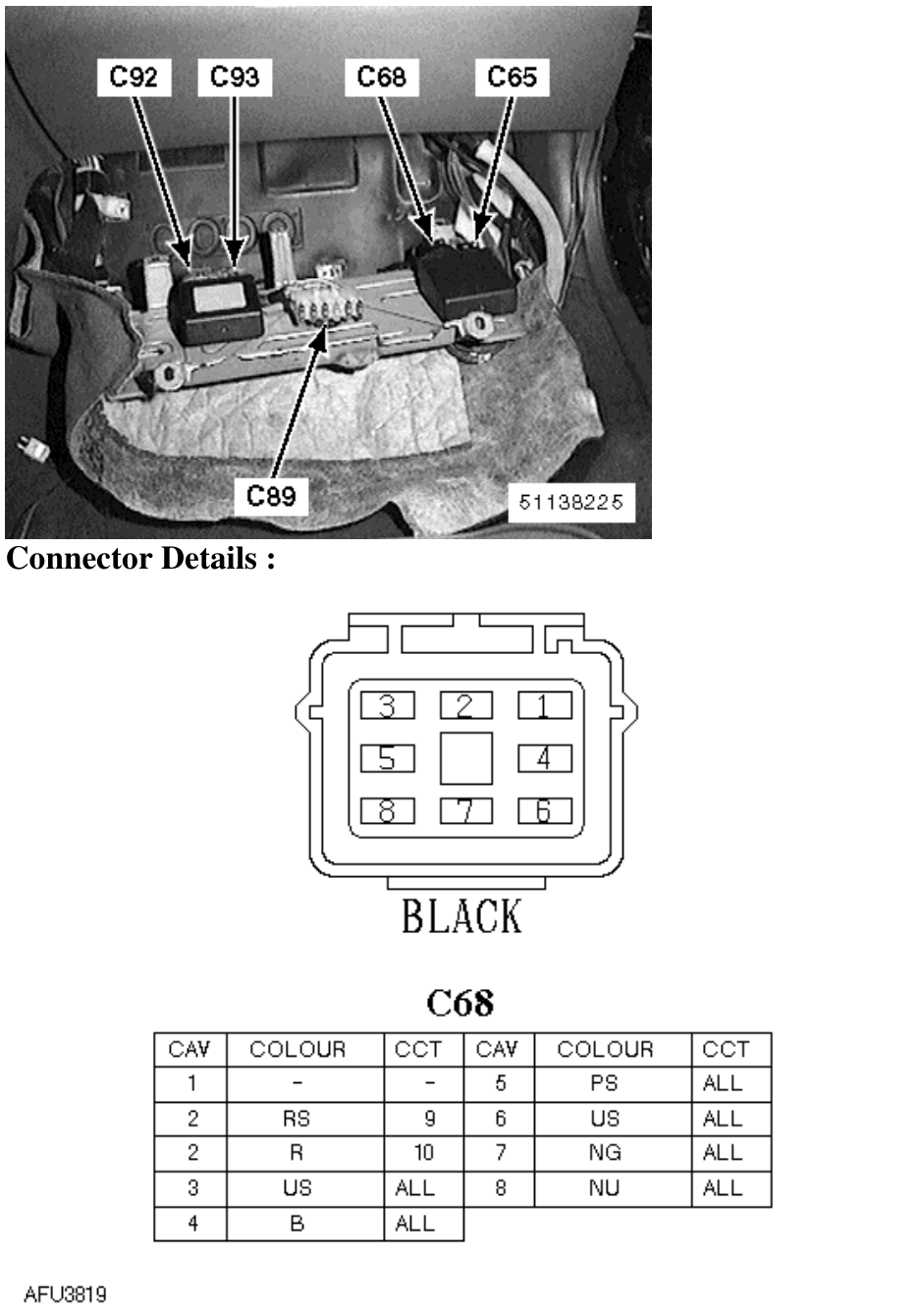

Description : RELAY MODULE (LHD) (2.0L MEMS) Location : Front bumper LH side Photo Location :

Description : RELAY MODULE (LHD) (2.0L MEMS) Location : Front bumper LH side Photo Locatio
