Air conditioningSchematic layout of the air conditioning system

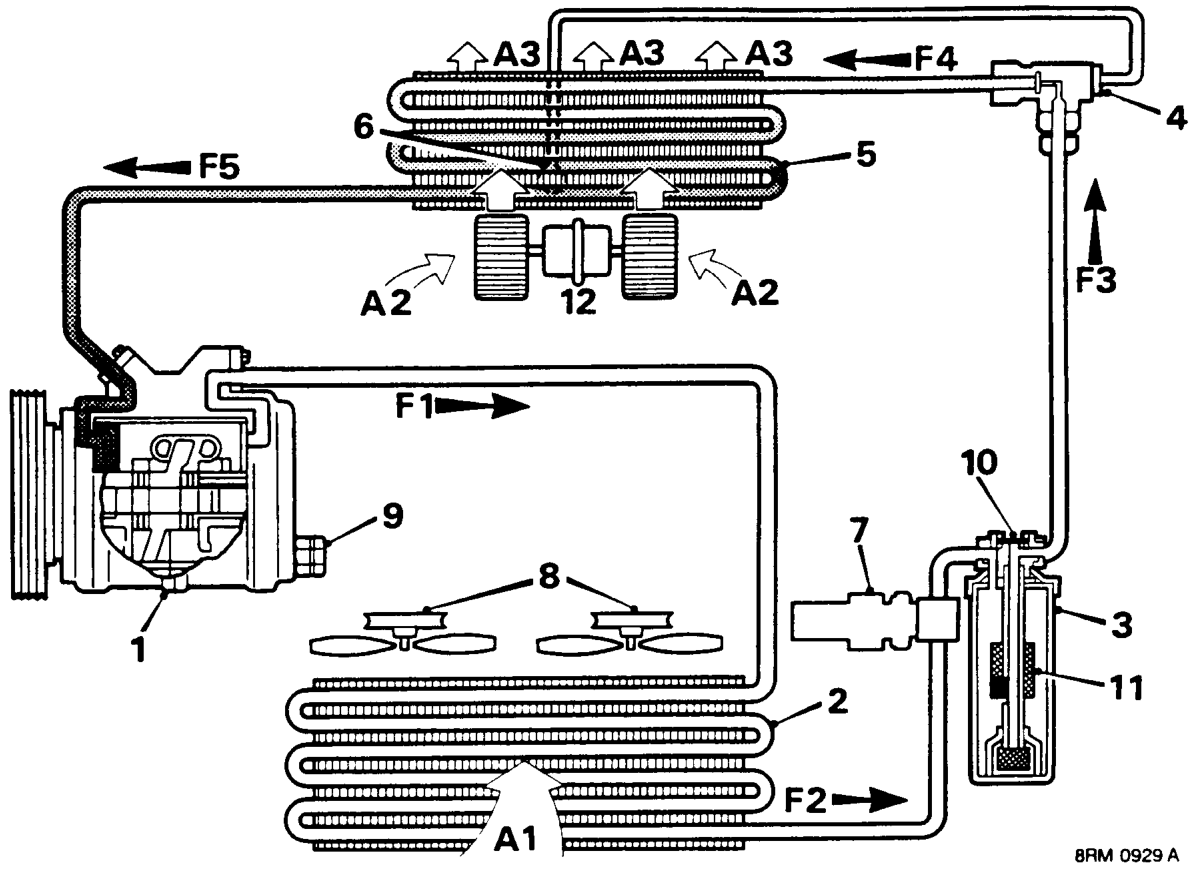

SCHEMATIC LAYOUT OF THE AIR CONDITIONING SYSTEM
- Compressor
- Condenser
- Receiver/drier
- Thermostatic expansion valve
- Evaporator
- Capillary tube
- Trinary pressure switch
- Cooling fans to increase air flow
- Compressor high pressure relief valve
- Sight glass - receiver/drier
- Drying agent - receiver/drier
- Blower motors
A1. Ambient air flow through condenser A2. Ambient air flow through fan and evaporator A3. Cooled air flow to vehicle interior F1. High pressure high temperature refrigerant vapour F2. High pressure slightly subcooled refrigerant liquid F3. High pressure slightly subcooled refrigerant liquid with moisture, vapour bubbles and foreign matter removed F4. Low pressure low temperature mixed liquid and vapour F5. Low pressure slightly superheated refrigerant vapour
