Cooling systemCooling system components

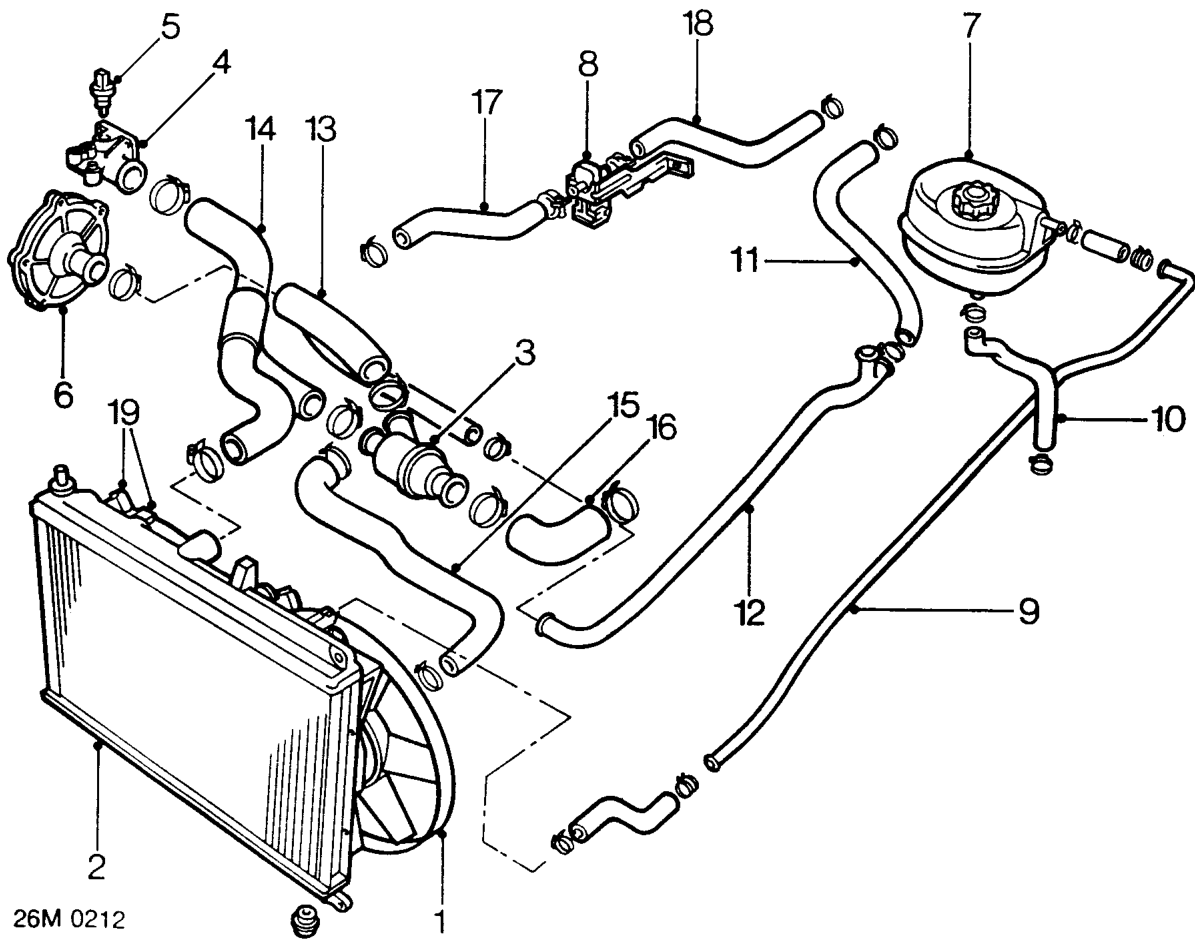

COOLING SYSTEM COMPONENTS

Cooling system components
  1. Cooling fan and cowl
  2. Radiator
  3. Thermostat housing
  4. Coolant outlet elbow
  5. Coolant temperature sensor
  6. Coolant pump
  7. Coolant expansion tank
  8. Heater valve
  9. Coolant expansion pipe
  10. Hose - Expansion tank to coolant rail
  11. Hose - Heater to coolant rail
  12. Coolant rail
  13. Hose - Coolant pump to thermostat housing
  14. Top hose
  15. Hose - Radiator to oil cooler
  16. Hose - Oil cooler to thermostat housing
  17. Hose - Engine to heater valve
  18. Hose - Heater valve to heater
  19. Thermostatic switch - 2 off
