Rover 620 Diesel Repair Manual Supplement (1995-1999)09 · Drive shafts
09 · Transmission

Drive shaft components (Drive shafts)

Make
Rover
Model
600 620 Diesel Repair Manual Supplement
Year
1995–1999
Section
Description and operation › Drive shaft components
Drive shaftsDrive shaft components
Diagram

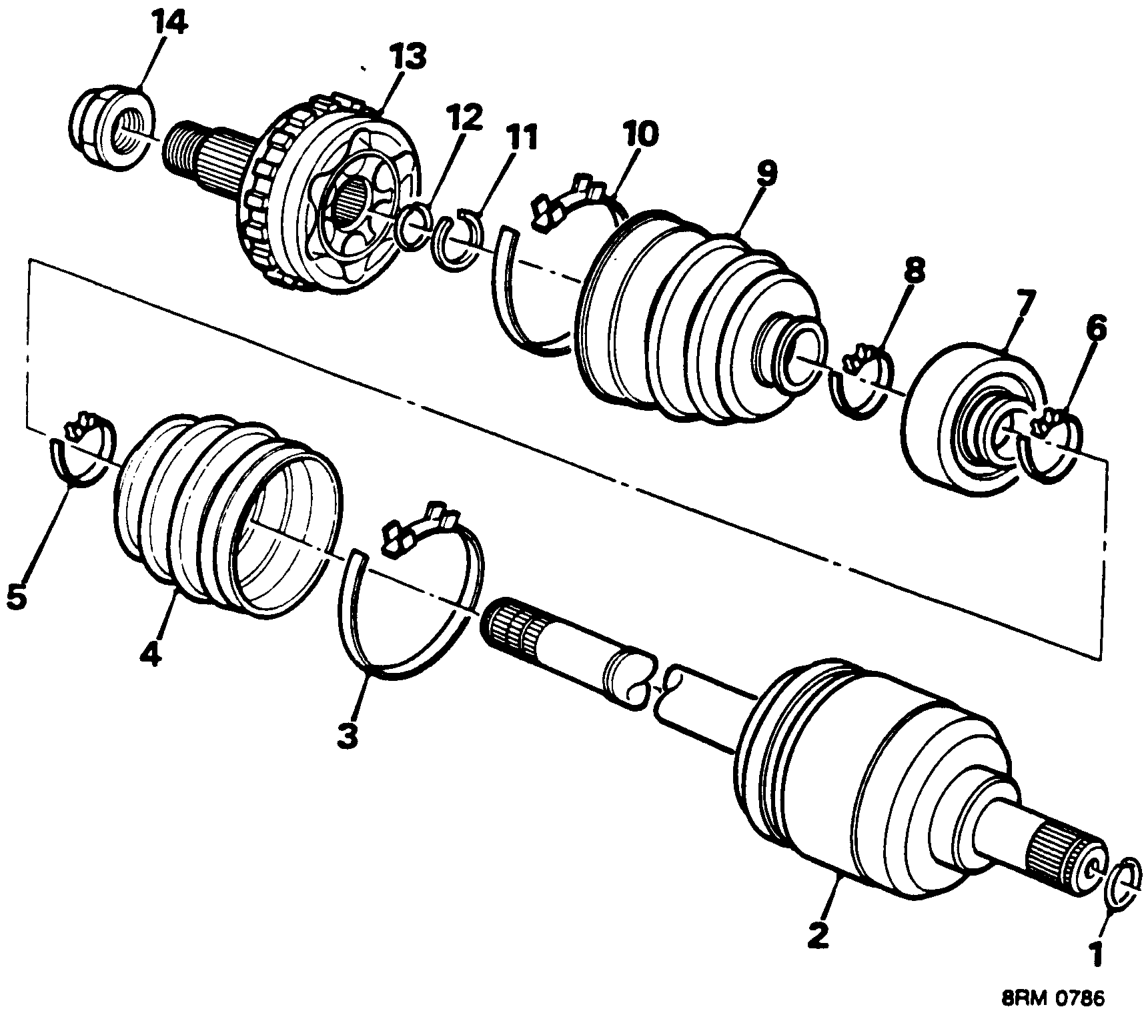

DRIVE SHAFT COMPONENTS

  1. Circlip
  2. Inner joint and shaft
  3. Large clip - inner joint gaiter
  4. Gaiter
  5. Small clip - inner joint gaiter
  6. Damper clip
  7. Dynamic damper
  8. Small clip - outer joint gaiter
  9. Gaiter
  10. Large clip - outer joint gaiter
  11. Stopper ring
  12. Circlip
  13. Outer joint
  14. Drive shaft nut
