INLET AND EXHAUST MANIFOLD COMPONENTS

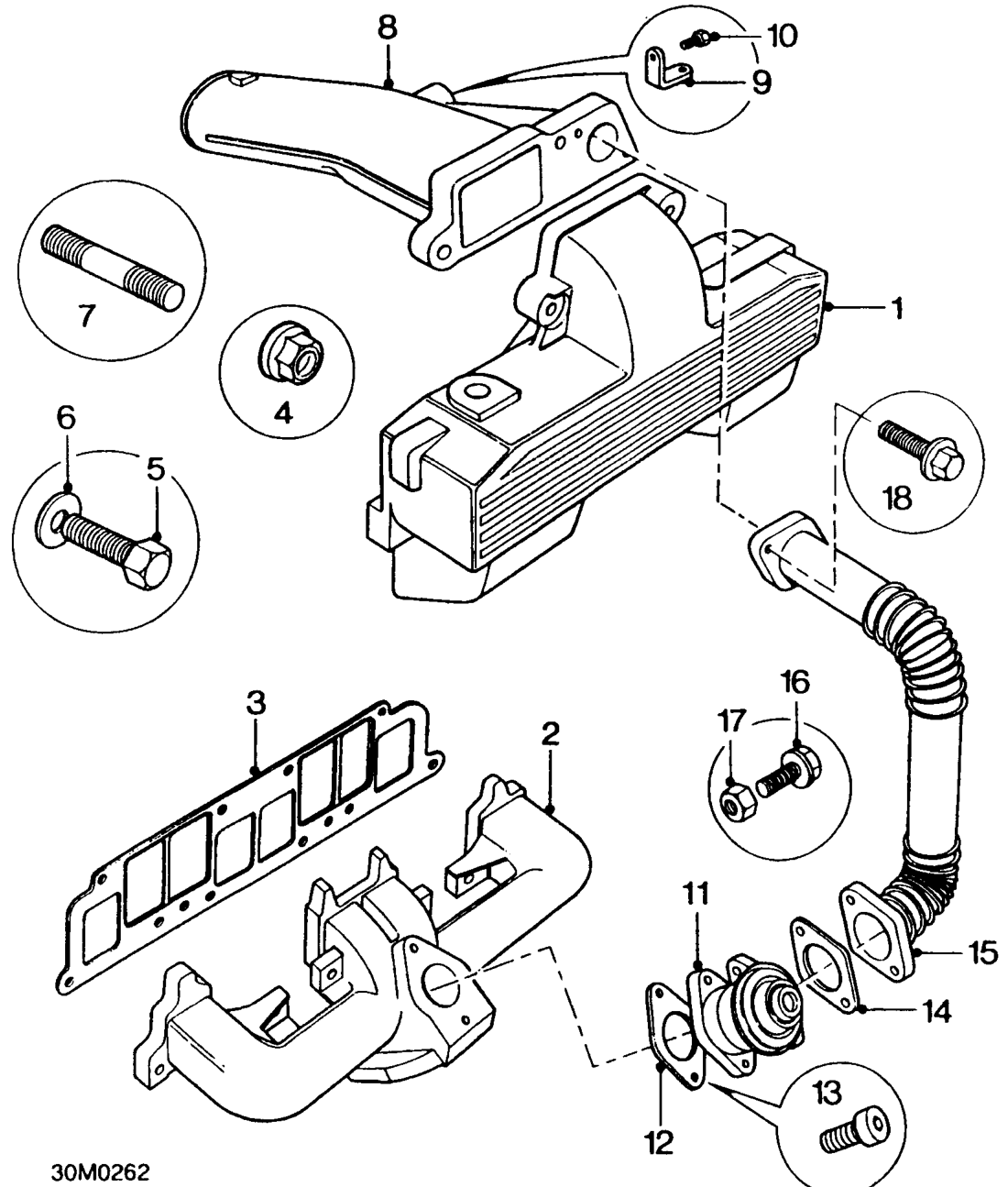

Inlet and exhaust manifold components
  1. Inlet manifold
  2. Exhaust manifold
  3. Gasket - inlet/exhaust manifold
  4. Nut - inlet/exhaust manifold to cylinder head
  5. Bolt - inlet/exhaust manifold to cylinder head
  6. Washer - inlet/exhaust manifold to cylinder head bolt
  7. Stud - inlet/exhaust manifold to cylinder head
  8. Inlet manifold intake pipe
  9. Bracket - intake pipe to camshaft cover
  10. Bolt - intake pipe bracket
  11. EGR valve
  12. Gasket - EGR valve to exhaust manifold
  13. Allen bolt - EGR valve to exhaust manifold
  14. Gasket - EGR recirculation pipe to EGR valve
  15. EGR recirculation pipe
  16. Bolt - EGR recirculation pipe to EGR valve
  17. Nut - EGR recirculation pipe to EGR valve
  18. Bolt - EGR recirculation pipe to inlet manifold
