Circuit diagrams
- Make
- Rover
- Model
- 600 620 Diesel Repair Manual Supplement
- Year
- 1995–1999
- Section
- Anti-lock braking system › Circuit diagrams
Wiring diagramsCircuit diagrams
CIRCUIT DIAGRAMS

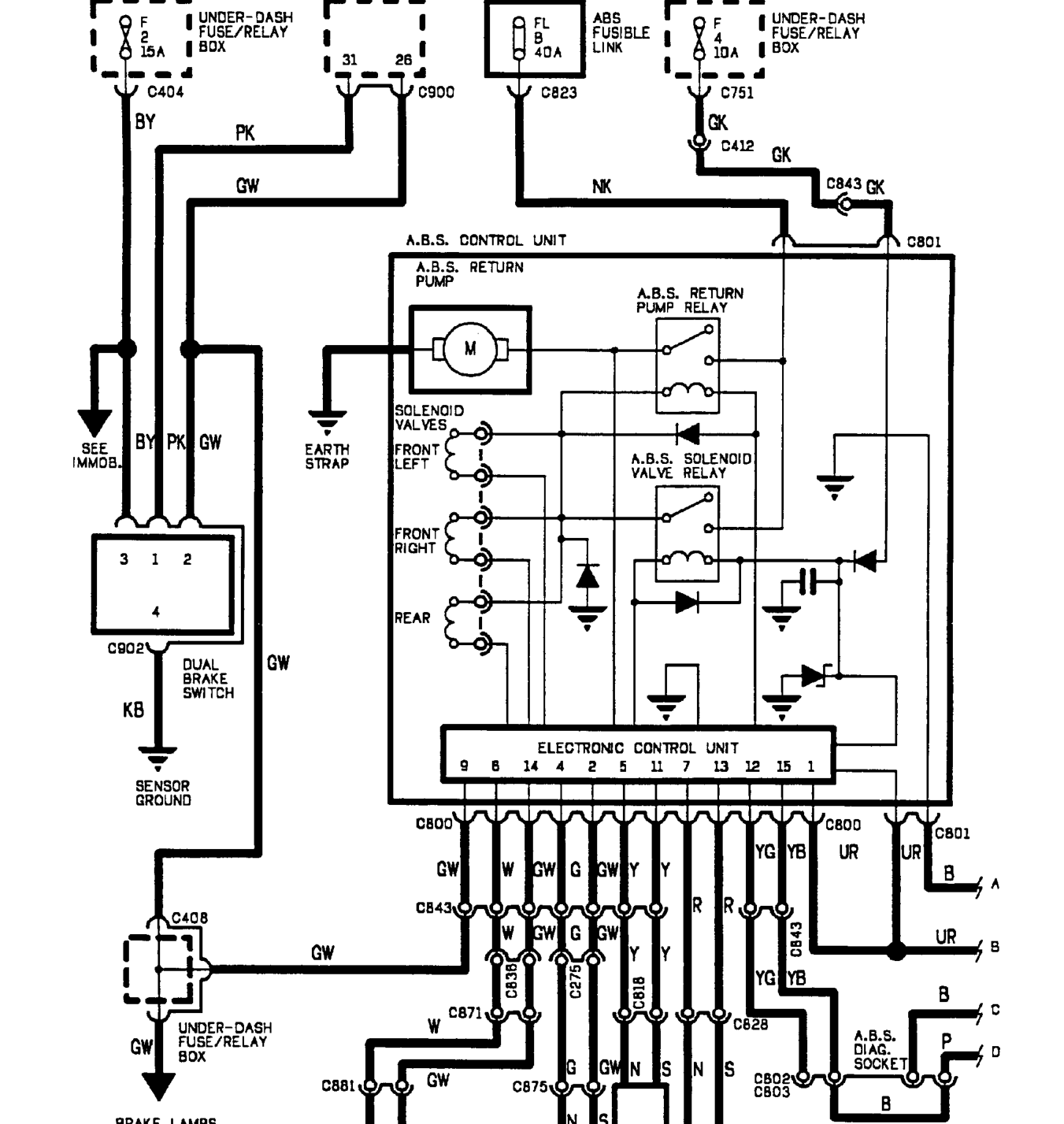

Anti-lock braking system - ABS2E
