Power distribution passenger compartment fusebox
- Make
- Rover
- Model
- 800 Circuit Diagrams
- Section
- Power distribution passenger compartment fusebox › Power distribution passenger compartment fusebox
‹ Prev Power distribution engine compartment fuseboxNext › Power distribution passenger compartment fusebox
Power distributionPower distribution passenger compartment fusebox

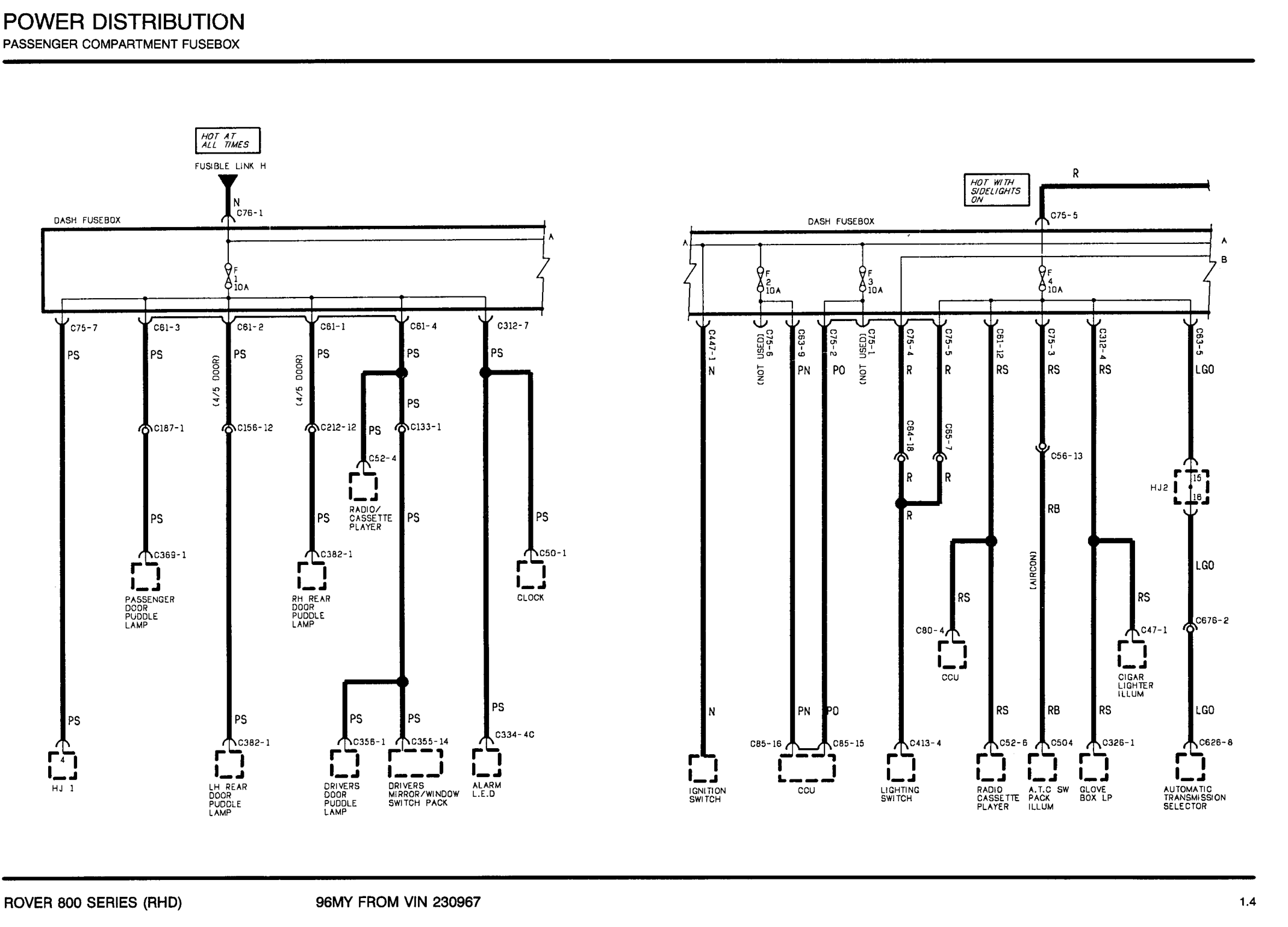

POWER DISTRIBUTION PASSENGER COMPARTMENT FUSEBOX
‹ Prev Power distribution engine compartment fuseboxNext › Power distribution passenger compartment fusebox
